ASSEMBLY/SETUP INSTRUCTIONS
2.6.3 Install
ing Case Drain Hose: M150/M200 and D-Series Headers without
Reverser
To connect the case drain hose to the header drive block, follow these steps:
1. Disconnect the reel return hose (and all the fittings
in between) connected to port T on the header
drive block.
2. Connect the #12 ORB x #10 JIC elbow (B) to port T on
the header drive block.
3. Connect the #10 JIC tee (C) to elbow (B).
4. Connect the #10 JIC x #10 JIC elbow (D) to tee (C).
5. Connect the #10 JIC x #6 JIC reducer (E) to elbow (D).
6. Install case drain hose (A) to reducer (E).
NOTE:
Make sure hose (A) is not rubbing against
any fittings.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 92
for additional information on the hydraulic connections.
7. Reconne ct the re el return hos e by ins talling elbow
removedearlierinStep1., page 37 to tee (C) fo llowed
by the reel return hose.
8. Proceed to 2.7 Installin g the Auxiliary Valve Blo ck,
page 40.

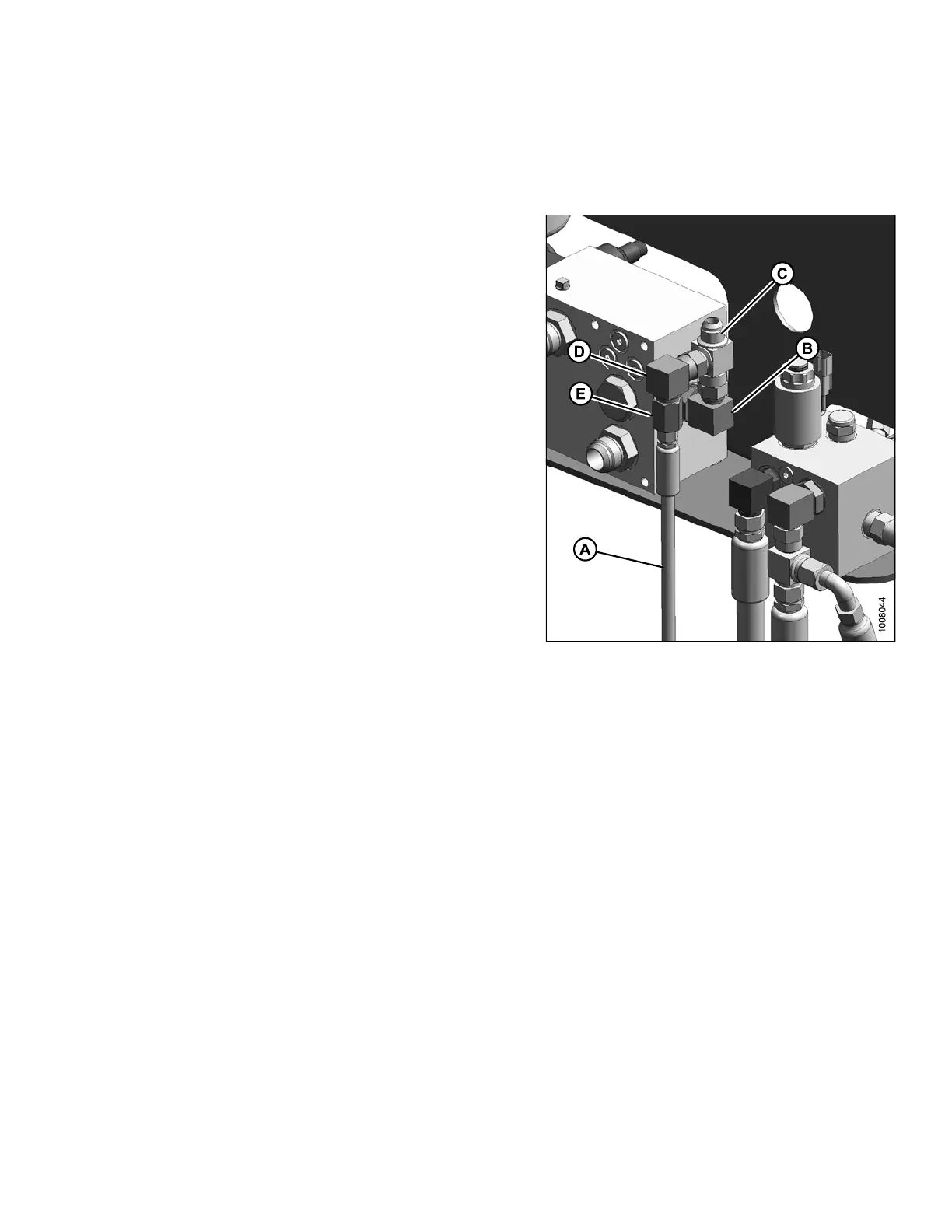

Figure 2
.61: Header Drive Block
A - Case Drain Hose B - #12 ORB x #10 JIC Elbow
C - #10 JIC Tee D - #10 JIC x #10 JIC Elbow
E - #10 JIC x #6 JIC Reducer
214049 37 Revision A
