2.6 Installing the Hydraulics
To install the DWA hydraulics, follow these steps:
1. Use a clean rag to remove dirt and moisture from all
hydraulic couplers t o prevent contam ination of the
hydraulic system.
2. Install the #10 ORB x #10 JIC elbow (A) into port DWA
on the draper drive block.
3. Install the #12 ORB x #10 JIC elbow (B) into port R1.

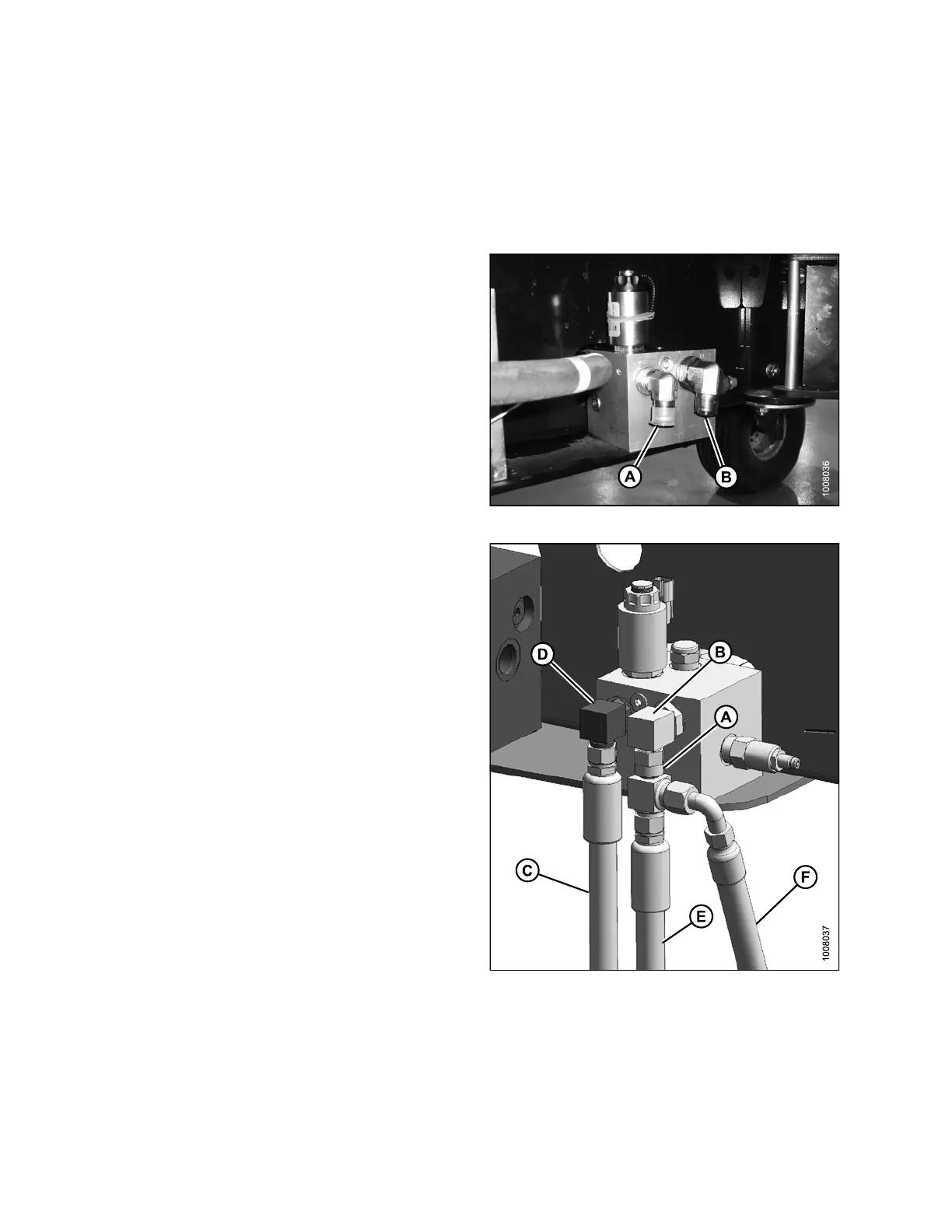

Figure 2.56: Draper D r iv e Block
4. Connect the #10 tee (A) to elbow (B) in the draper
drive block.
5. Connect the pressure hose (C) (with blue cable tie)
from the top port of the draper drive m otor to elbow (D)
in the draper drive block.
6. Connect the return hose (E) to tee (A).
7. Connect the 1/2 in. lift cylinder hose (F) to tee (A).
Figure 2.5
7: Draper Drive Block
A - #10 Tee
B-Elbow
C - Pressure Hose
D-Elbow E-ReturnHose
F - Lift Cylinder Hose
