ASSEMBLY/SETUP INSTRUCTIONS
16. Raise backsheet (A) on the deck and remove the top
nuts (B) and (C).
17. Install the gas shock (D) in the center hole and secure
it with nuts (B) and (C).
IMPORTAN T:
Make sure the taper of nut (C) is facing the gas
shock rod end as shown.

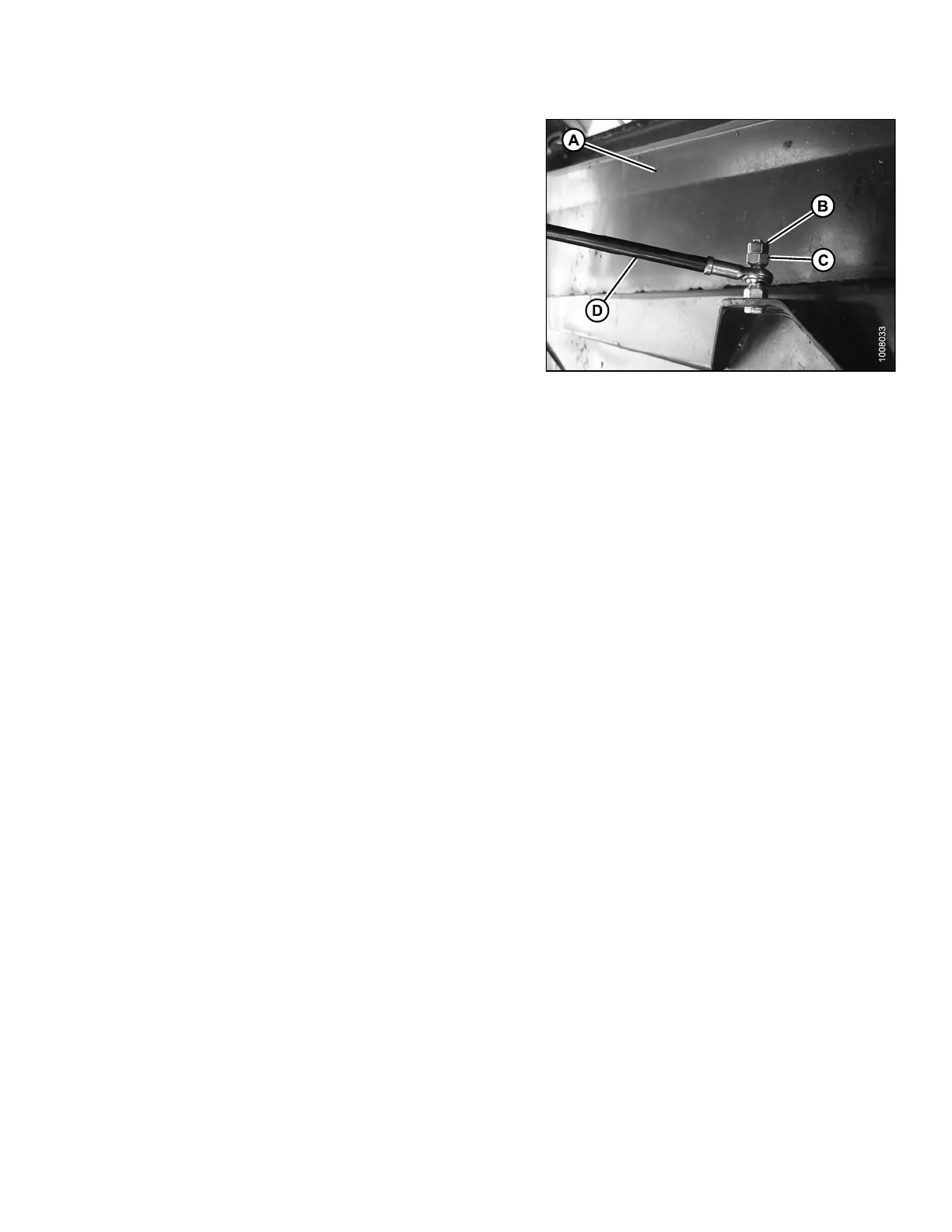

Figure 2.55: Backsheet Gas Shock
214049 33 Revision A
