OPERATION

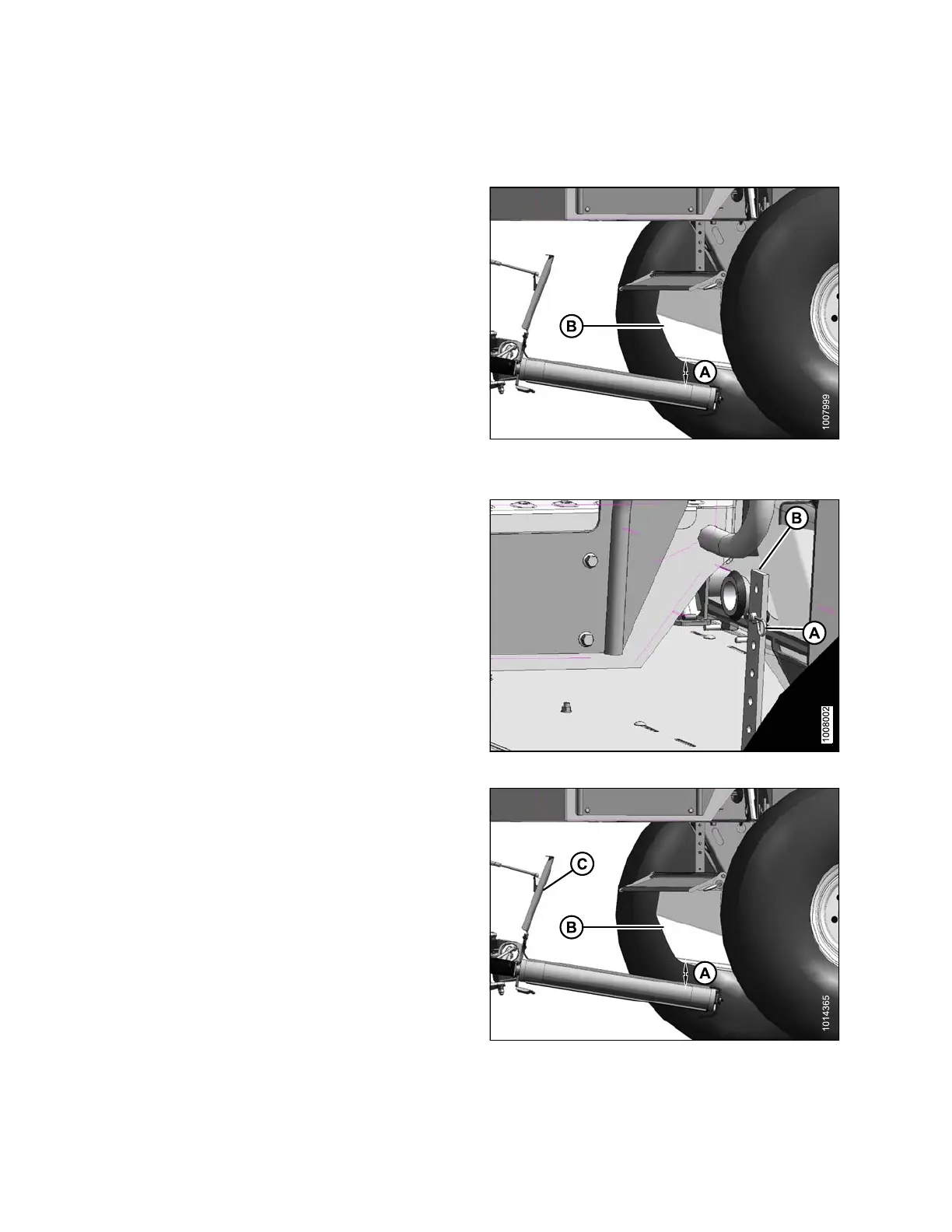

3.7 Positioning the Conditioner Forming Shield
To adjust the position of the conditioner forming shields, follow these steps:
1. Make sure the forming shield (B) is high enough to
clear the deck when it is lowered (A).
Figure 3.13: Deck Lowered
A - Distance between Forming Shield (B) and the Deck
2. Remove the hairpin (A).
3. Adjust strap (B) to achiev e the ideal positio n.
NOTE:
The forming shield should be as low as possible
without interfering with deck.
Figure 3.14: Forming Shield
4. Adjust the left-hand side deflector (B) to direct crop
towards the inboard side of the DWA back sheet (C).
NOTE:
If center delivering, the left-hand deflector (B) can
be moved inward to form a narrower windrow.
5. Adjust the right-hand side deflector to the widest
position without affecting crop flow. Thisiswherethe
deck is farth es t from the con dition e r rolls.
Figure 3.15: Deck Lowered
214049 62 Revision A
