MacDon DWA - 3.4 Setting Draper Speed

OPERATION
6. Adjust the rear deflector baffle(A)socropflow (B) does
not interfere with the deck when fully raised.

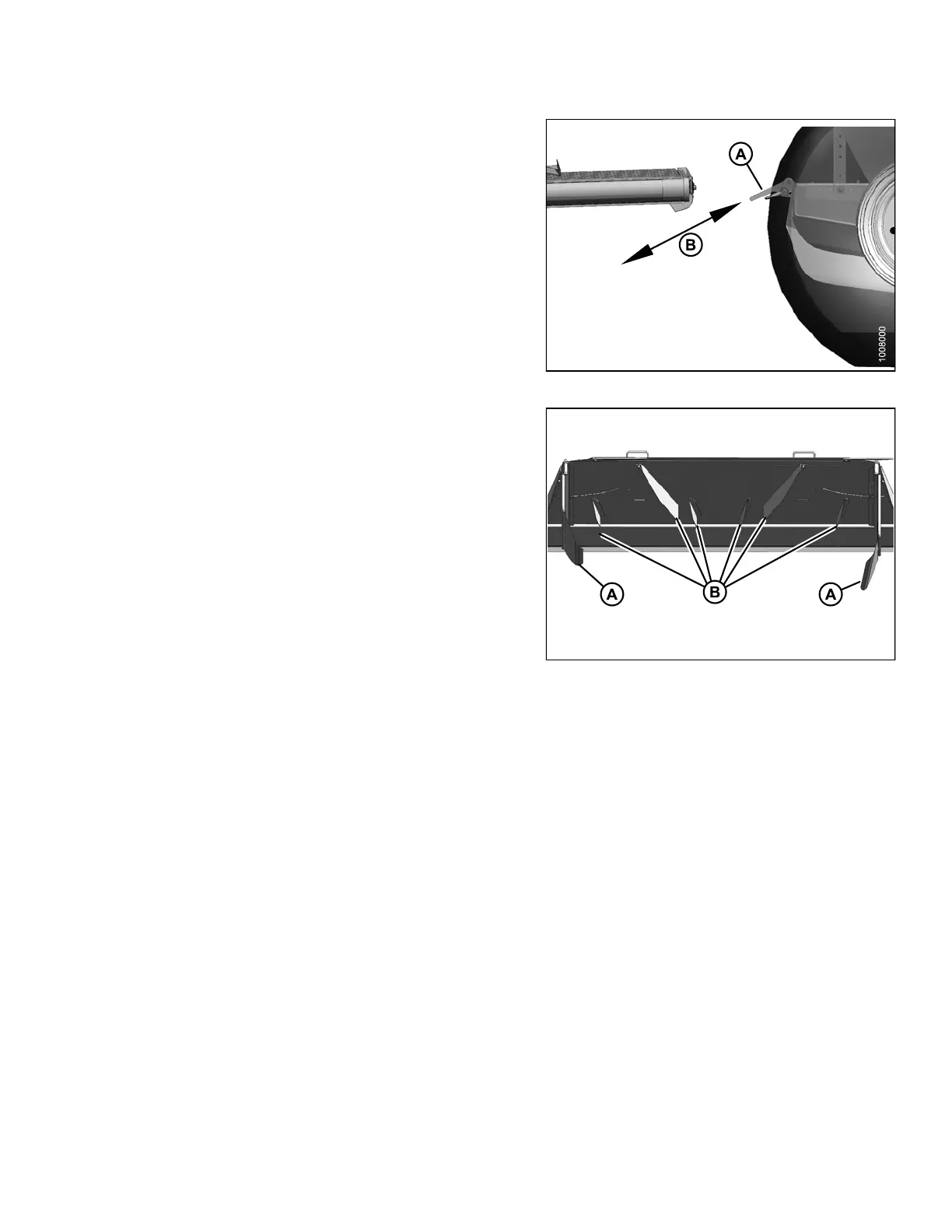

Figure 3.16: Deck Raised
NOTE:
The fins (B) under the forming shield can interfere
with crop flow, especially with an R-Series Header in
light crop. If necessary rem ove fins (B).
Figure 3.17: Fins Under Forming Shield
A-SideDeflector B - Fins Under Forming Shield
214049 63 Revision A
