OPERATION
3.3.1 Adjusti
ngtheDeckLiftSpeed
Finding the proper Double Windrow Attachment (DWA) deck lift speed is essential to its proper operation. The deck
must lift fast enough to clear a windrow, and slow enough not to stop abruptly against the bottom of the windrower.
The deck lift valve uses an hex socket screw (A) to lock the
adjusting knob into position. Loosen locking screw enough
to allow the adjustment valve to turn. Do NOT remove
screw. Tighten screw after adjustments.
Refer to the follow ing to adjust the deck lift speed:
• If the deck lift speed is too fast, turn the adjuster knob (B)
to the right.
• If the deck lift speed is too slow, turn the adjuster
knob (B) to the left.
NOTE:
The lift v
alve only restricts the lift speed of the DWA. The
DWA deck d
rop speed remains constant.

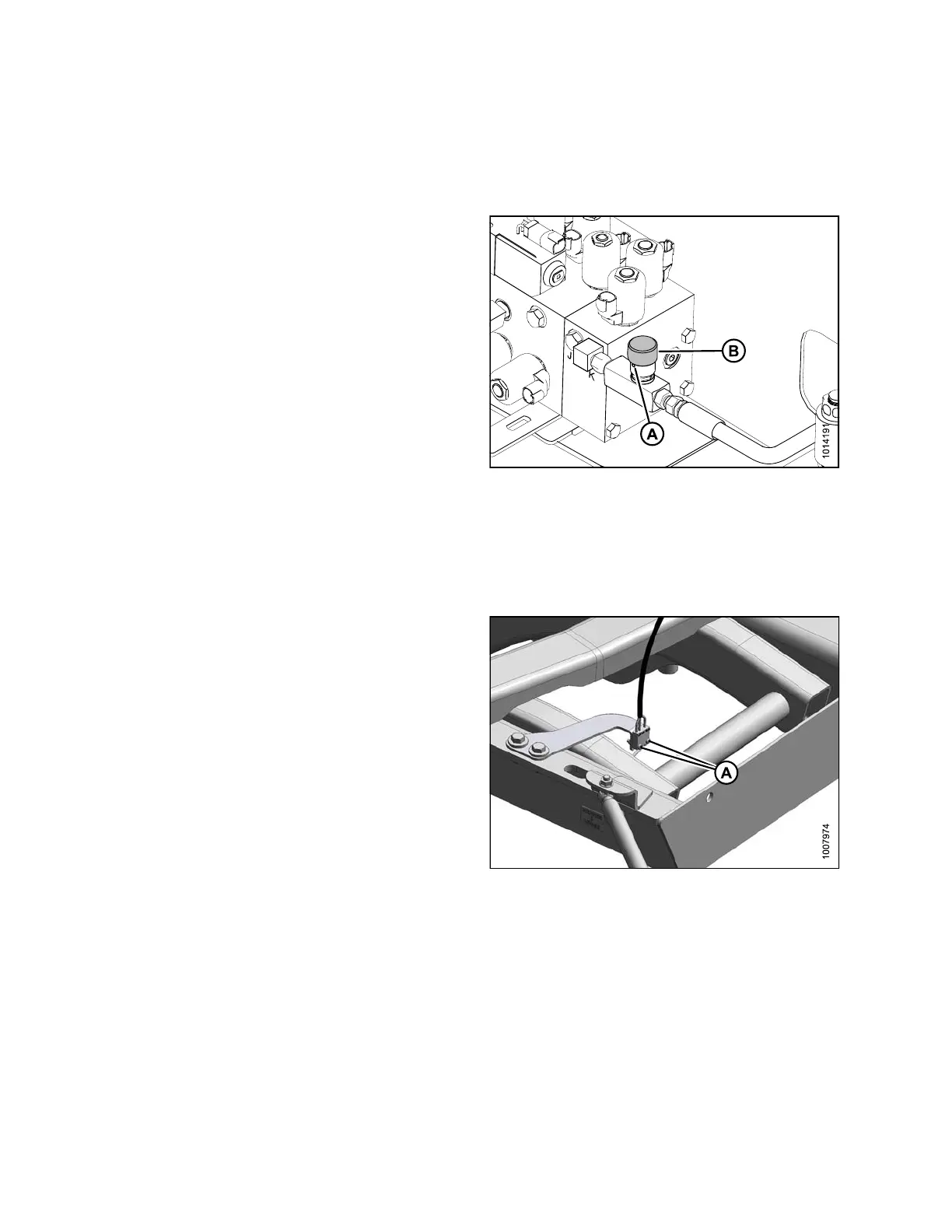

Figure 3. 4: Auxiliary Valve Block and Deck L ift
Speed Valve
3.3.2 Adjusting the Draper Shut-Off Switch
To adju
st the draper shut-off switch, follow these steps:
The dra
per shuts off automatically when the deck is raised
about 2
/3 of the way. If the deck does not shut off soon
enoug
h (resulting in the backsheet touching the draper
befor
e it shuts off), the switch at the linkage needs to be
lower
ed:
1. Loos e
n screws (A) to lower the switch.
2. Tigh
ten screws (A) when the adjustment is complete.
NOTE:
Do not overtighten the screws or the switch will
not work.
Figure 3.5: Draper Shut-Off Switch
214049 56 Revision A
