3.3 Raising and Lowering the Deck
NOTE:
Use extra caution when raising the deck for the first time. The deck rotates as it rises and lowers, and the
backsheet folds on to the deck. Make sure the deck and backsheet are not interfering with windrower parts or
with the forming shield.
If you have ch
osen YES to swap the Double Windrow
Attachment (
DWA) controls in the setup instruc tio ns , use
the REEL FOR
E-AFT switch on the ground speed lever
(GSL) to RAI
SEandLOWERthedeck:
• The deck moves forward when lowering, so switch
operation will be the same as when moving the
reel forward. REEL FORWARD position (A) moves
DWA DOWN
• The deck moves rearward when raising so switch
operation will be the same as when moving the reel
rearward. REEL AFT position (B) moves DWA UP

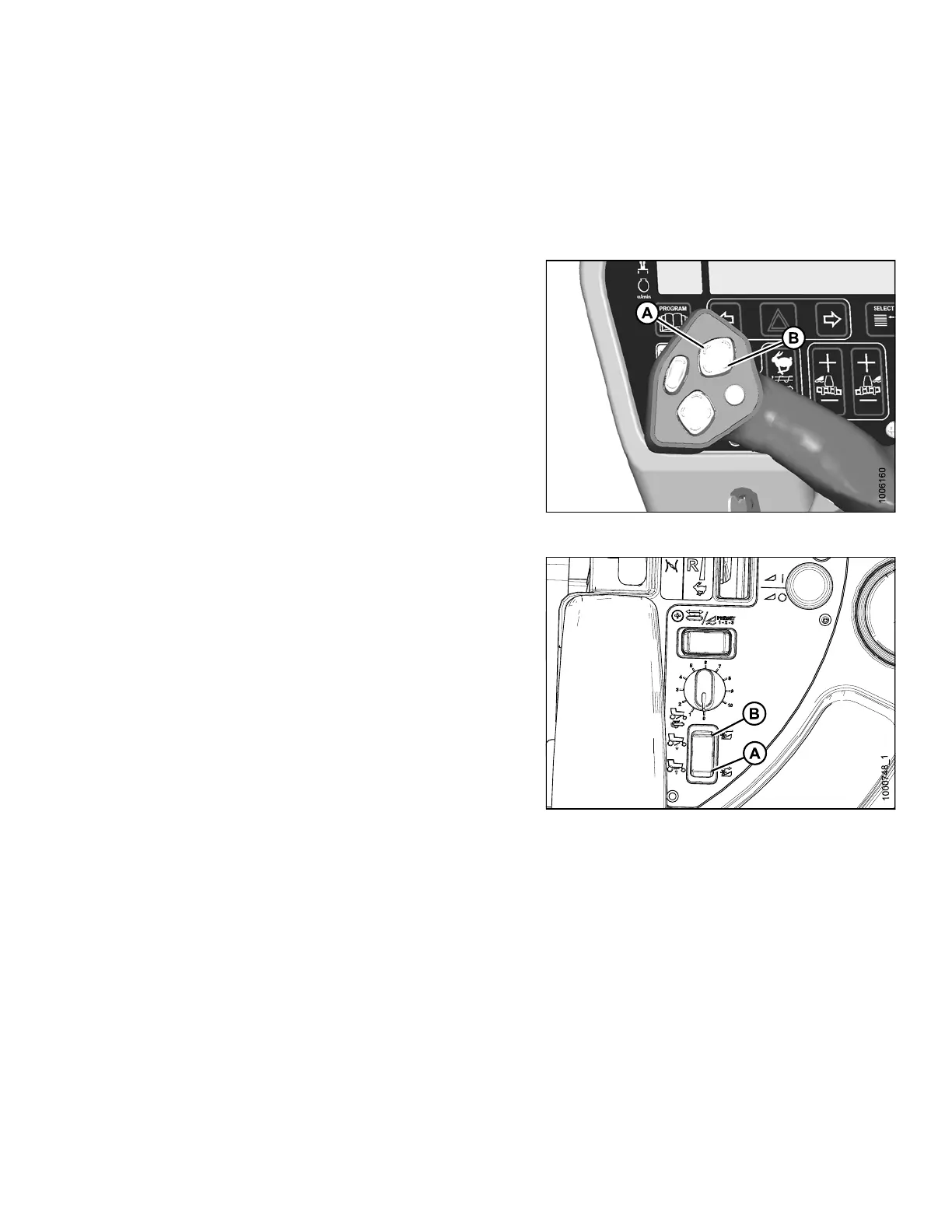

Figure 3.2: Reel Fore-Aft Switch
If you have chosen NO to swap the DWA controls in
the setup instructions, use the console DECK LIFT
CONTROLS rocker switch to move the DWA UP and
DOWN.
• Press the rocker switch forward portion (B) to lowe r the
DWA (DWA DOWN)
• Press the rocker switch rearward portion (A) to raise the
DWA (DWA UP)
Figure 3.3: Console Rocker Switch
214049 55 Revision A
