MacDon DWA - Installing Case Drain Hose: M150;M200 and A-Series Headers Without Reverser

ASSEMBLY/SETUP INSTRUCTIONS
To install case drain hose (A), proceed to the section that
applies to your windrower/header configuration:
• M150/M200 and A-Series, no reverser. Refer to 2.6.1
Installing Case Drain Hose: M150/M20 0 and A-Series
Headers without Reverser, page 35
• M150/M200 and A-Series with reverser. Refer to 2.6.2
Installing Case Drain Hose: M150/M20 0 and A-Series
Headers with Reverser, page 36
• M150/M200 and D-Series, no reverser. R efer to 2.6.3
Installing C a se Drain Ho se : M150/M 2 00 and D-Serie s
Headers without Reverser, page 37
• M150/M200 and D-Series with reverser. Refer to 2.6.4
Installing C a se Drain Ho se : M150/M 2 00 and D-Serie s
Headers with Reverser, page 38
• M150/M200 and R-Series. Refer to 2.6.5 Installin g Case
Drain Hose: M150/M200 and R-Series Headers, page
38
• M155/M155E4/M205 all header types. Refer to 2.6.6
Installing Case Drain Ho se : M155/M155E4/M205 with
All Headers, page 39

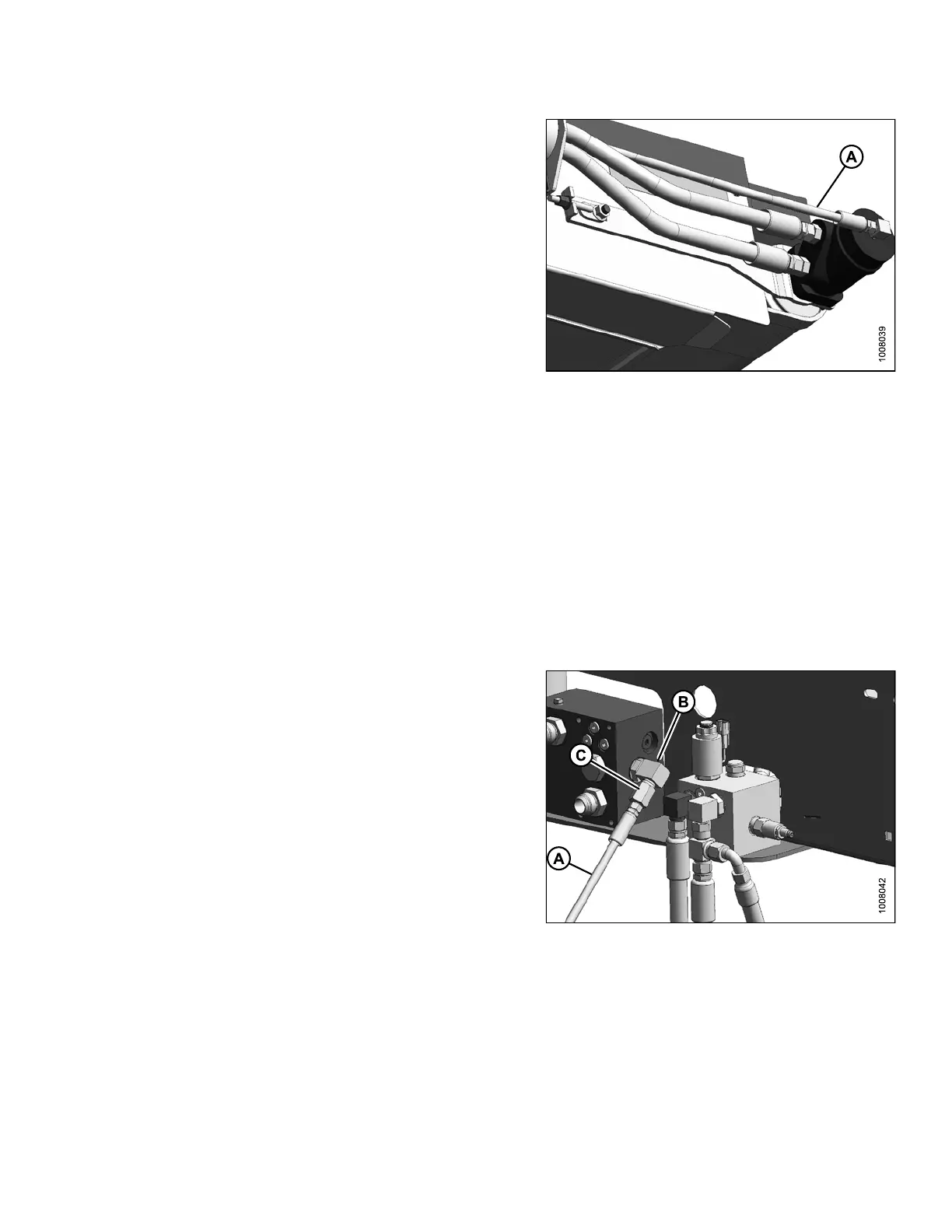

Figure 2.58: Case Drain Hose
2.6.1 Installi
ng Case Drain Hose: M150/M200 and A-Series Headers without
Reverser
To connect the case drain hose to the header drive block, follow these steps:
1. Connect the #12 ORB x #10 JIC elbow (B) to port T on
the header drive block.
2. Connect the #10 JIC x #6 JIC reducer (C) to elbow (B).
3. Install the case drain hose (A) to reducer (C).
NOTE:
Make sure hose (A) is not rubbing against
any fittings.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 92
for additional information on the hydraulic connections.
4. Proceed to 2.7 Installin g the Auxiliary Valve Blo ck,
page 40.
Figure 2.59: Header Drive Block
214049 35 Revision A
