ASSEMBLY/SETUP INSTRUCTIONS
2.9.2 Install
ing the Tank Overflow Hose Extension: M155/M155E4
To install the tank overflow hose on an M155 or M155E4 Self-Propelled Windr ower, follow these steps :
1. Locate the end of the fuel tank overflow hose (A) on
windrower.
2. On an M155, pull the fuel tank hose (A) out from
clamp (B).
3. Attach union fittingtofueloverflow line using smaller
gear clamp.

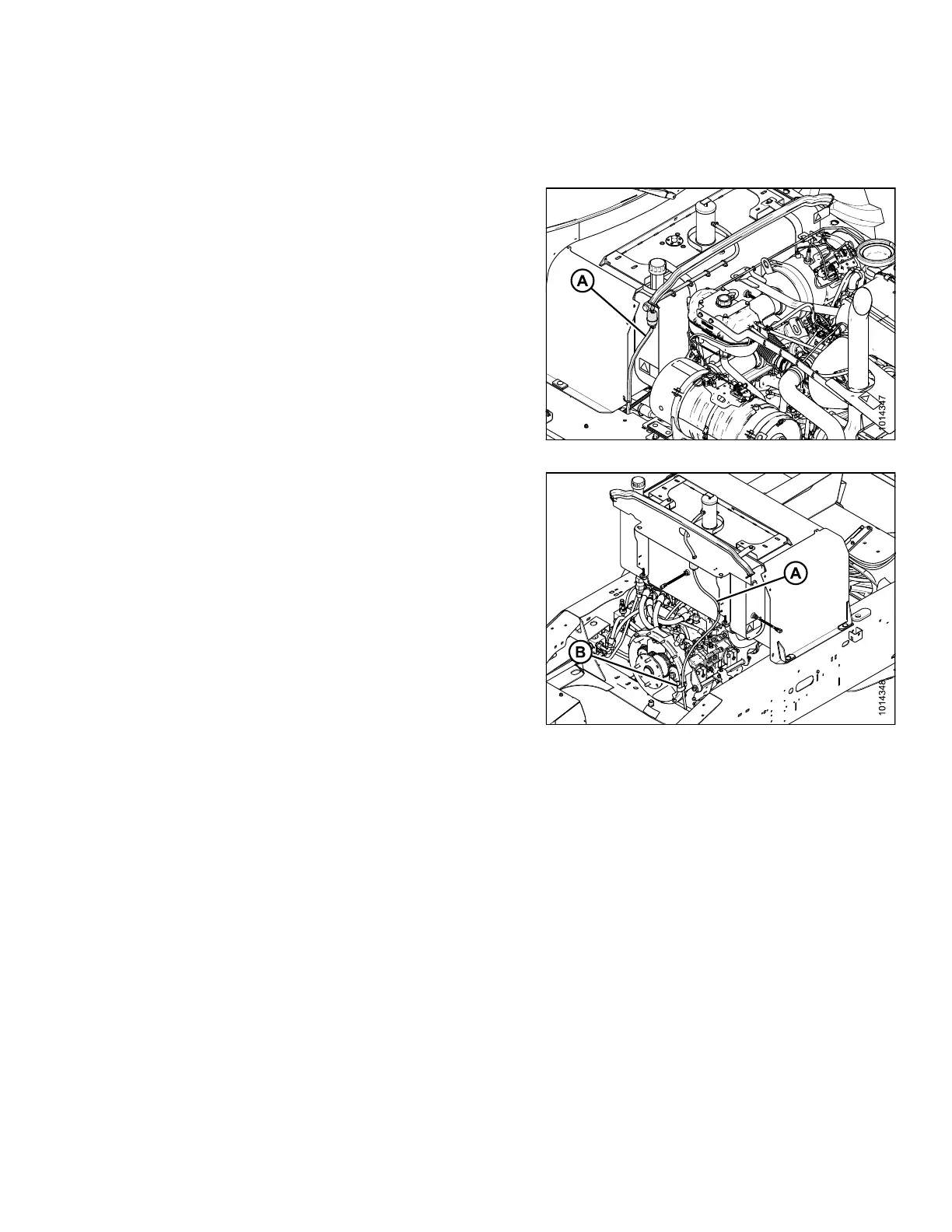

Figure 2.85: M155E4 Fuel Overflow Hose
Figure 2.86: M155 Fuel Overflow Hose
