ASSEMBLY/SETUP IN STRUC TIONS
2.6.2 Install
ing Case Drain H ose: M150/M200 and A-Series Headers with
Reverser
To connect the case drain hose to the header drive block, follow these steps:
1. Connect the #12 ORB x #10 JIC elbow (B) to port T on
the header drive b lock.
2. Connect the #10 JIC x #10 JIC elbow (C) to elbow (B).
3. Conne ct the # 10 JI C x #6 JIC reducer ( D) to elb o w (C).
4. Install the case drain hose (A) to reducer (D).
NOTE:
Make sure hose (A) is not rubbing against
any fittings.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 92
for additional information on the hydraulic connections.
5. Proceed to 2.7 Installing the Auxiliary Valve Blo ck,
page 40.

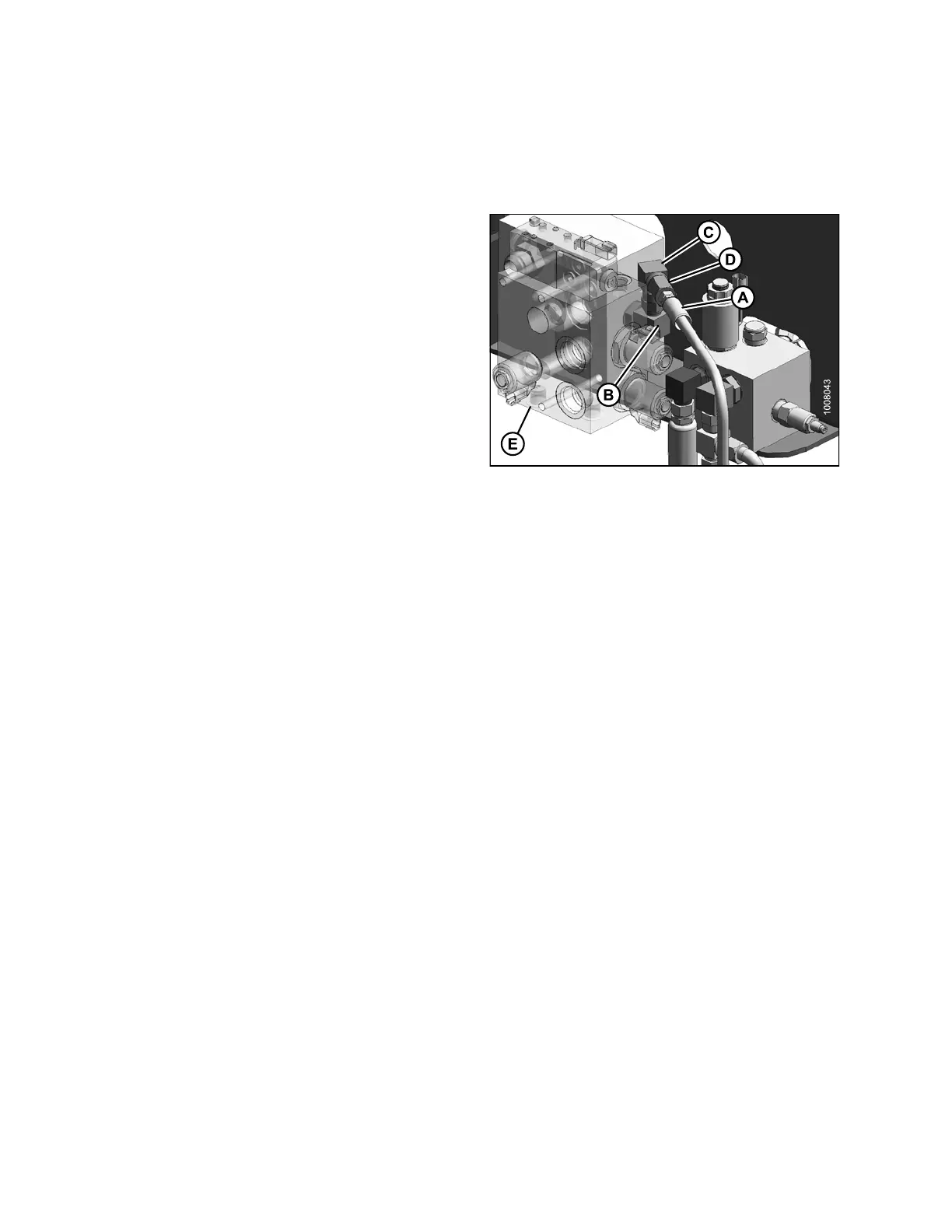

Figure 2.60: Header Drive Block
A - Case Drain Hose B - #12 ORB x #10 JIC Elbow
C-#10JI
C x #10 JIC Elbow
D - #10 JI
C x #6 JIC Reducer
E - Reverser (Hidden)
214049 36 Revision A
