MacDon DWA - Hydraulics and In-Cab Electrical

REPAIR PARTS
5.5 Hydraulics and In-Cab Electrical
Fi

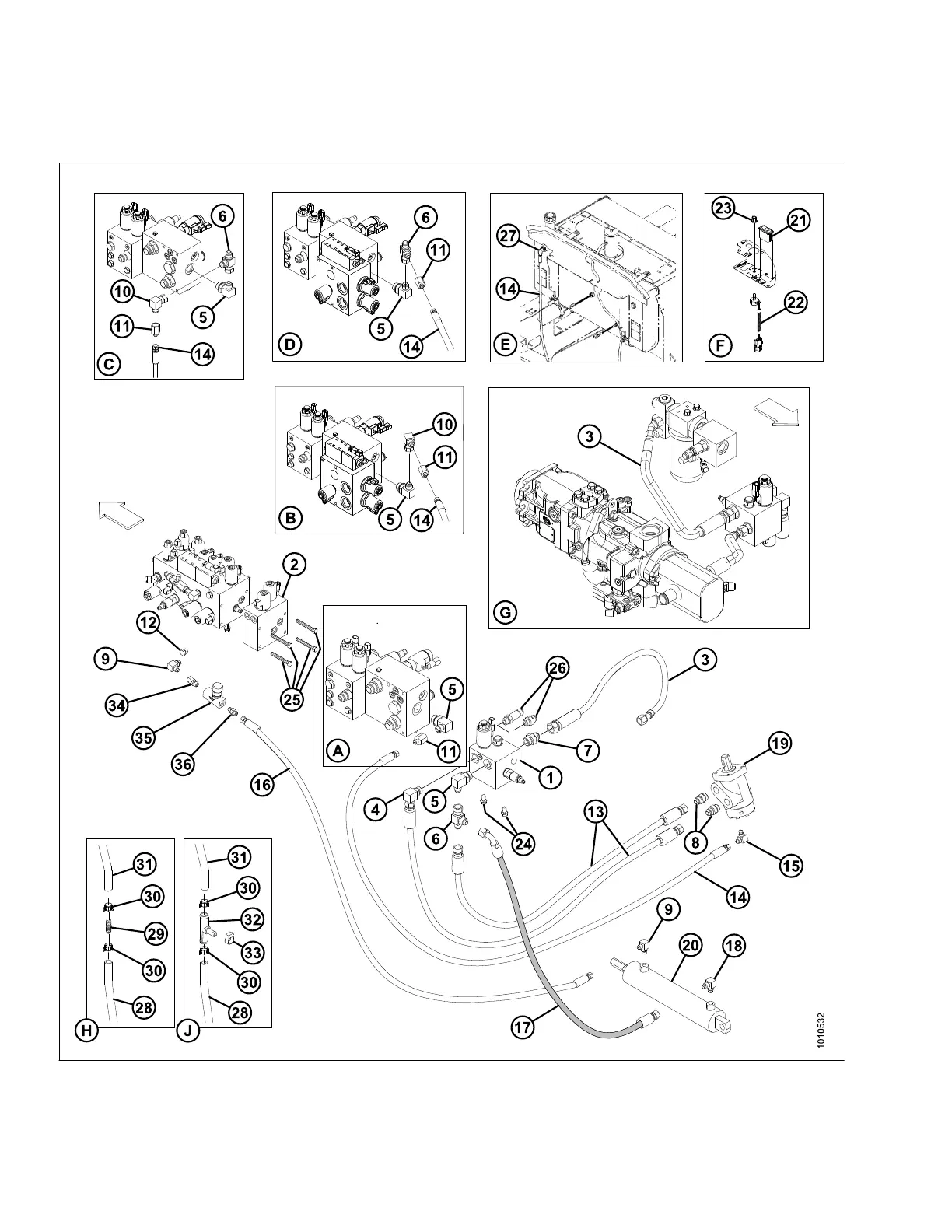

gure 5.7: Hydra ulics and In-Cab Electrical
A - M150/M200 A-Series Or R-Series: Case Drain B - M150/M200 A-Series With Reverser: Case Drain
C - M150/M200 D-Series: C ase Drain D - M150/M200 D-Series With Reverser: Case Drain
E - M155/M155E4/M205: Case Drain F - In-Cab Electrical
G - M150/M200 Shown (5-Series Similar) H - Optional M200 Only
J-
Optional M155/M155E4/M205
214049 92 Revision A
