ASSEMBLY/SETUP IN STRUC TIONS
2.5 Installing the Deck
To install the DWA deck, follow these steps:

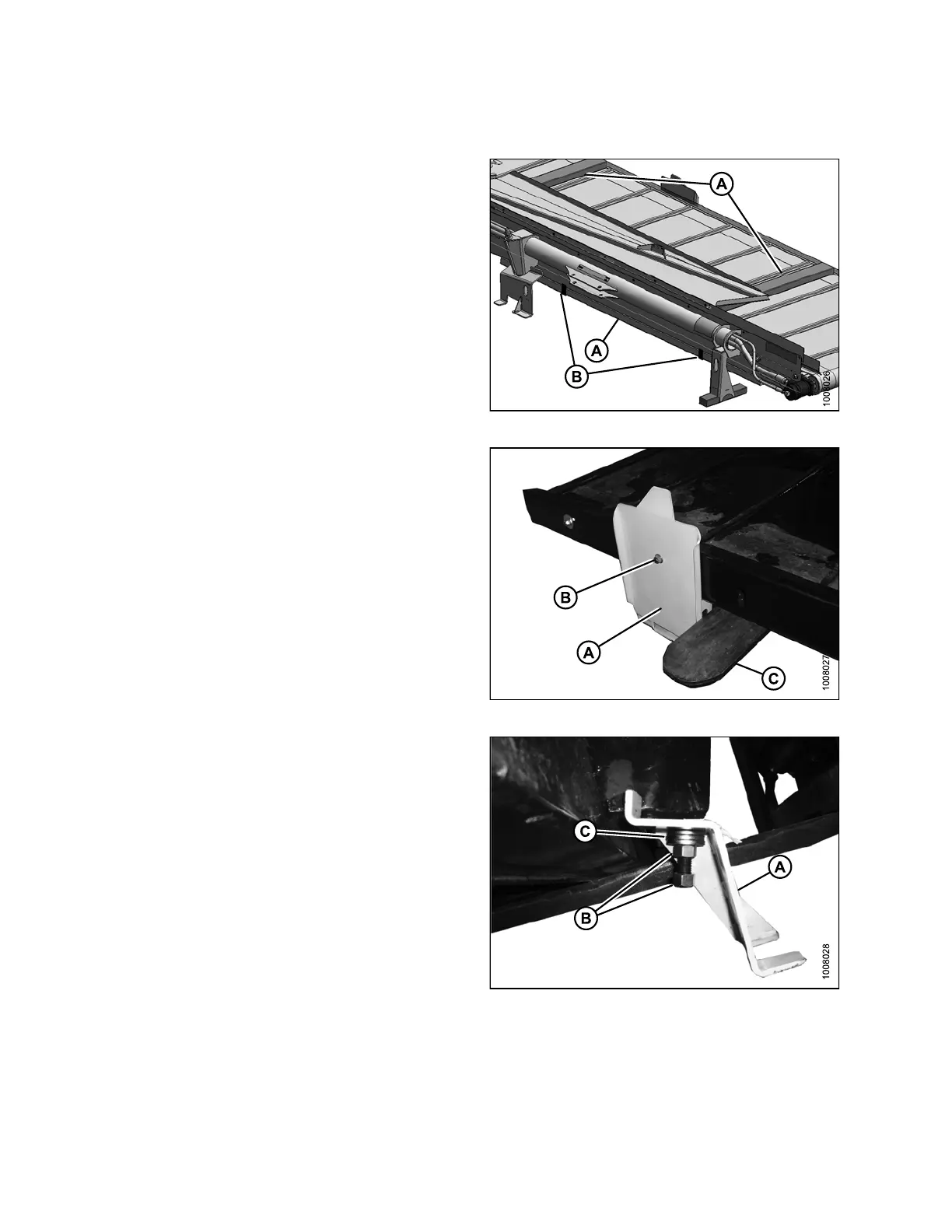

1. Remove the shipping boards (A) by removing the
transport banding (B) and discard.
Figure 2.4
6: DWA Deck
2. Suppor t th e deck with a for k lift. Forks (C) sh ould be
inboard of shipping stand (A).
3. Remove the two shipping stands (A) from the front of
the deck by removing nut (B).
4. Reinstall nut (B) w ith a washer. Washers are supplied
in hydraulic kit.
Figure 2
.47: Deck Shipping Stand
5. Remove the shipping stand (A) from the rear of the
deck by removing the two nuts (B) and washers (C).
Figu
re 2.48: Deck Shipping Stand
