MAINTENANCE AND SERVICING
To reinstall the drive roller on the deck, follow these steps:
1. Slide the drive roller onto the motor shaft. Make sure it
is fully engaged.
NOTE:
Thedriverollershouldbe33mm(1-1/3in.)(A)
fromthefaceofthemotor.

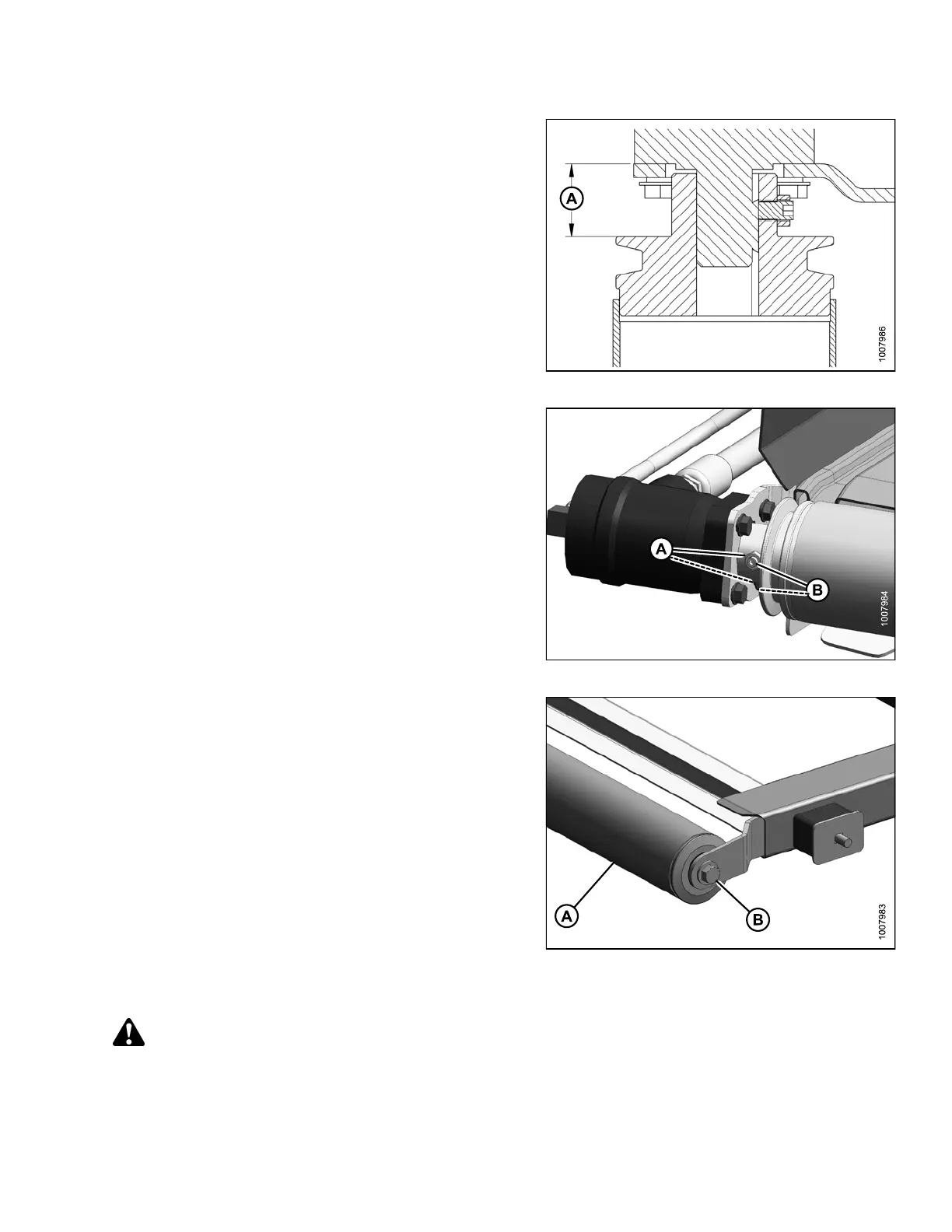

Figure 4.13: Drive Roller Cross Section
2. Install the two set screws (B) and torque to
27 N·m (20 ft·lbf).
3. Install the two ja m nuts (A).
Figure 4.14: Draper Drive Roller
4. Torque bolt (B) to 95 N·m (70 ft·lbf).
Figure 4.15: Draper Drive Roller
Removing and Reinstalling the Idler Roller
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, stop engine, remove
key and engage safety pin before going under machine for any reason.
214049 73 Revision A
