MAINTENANCE AND SERVICING
To re move the drive roller from the deck, follow these steps:
1. Raise deck, and engage safety pin (A).
2. Remove front skid, loosen and remove draper. Refer
to 4.1.5 Adjusting Front Skid, page 70.

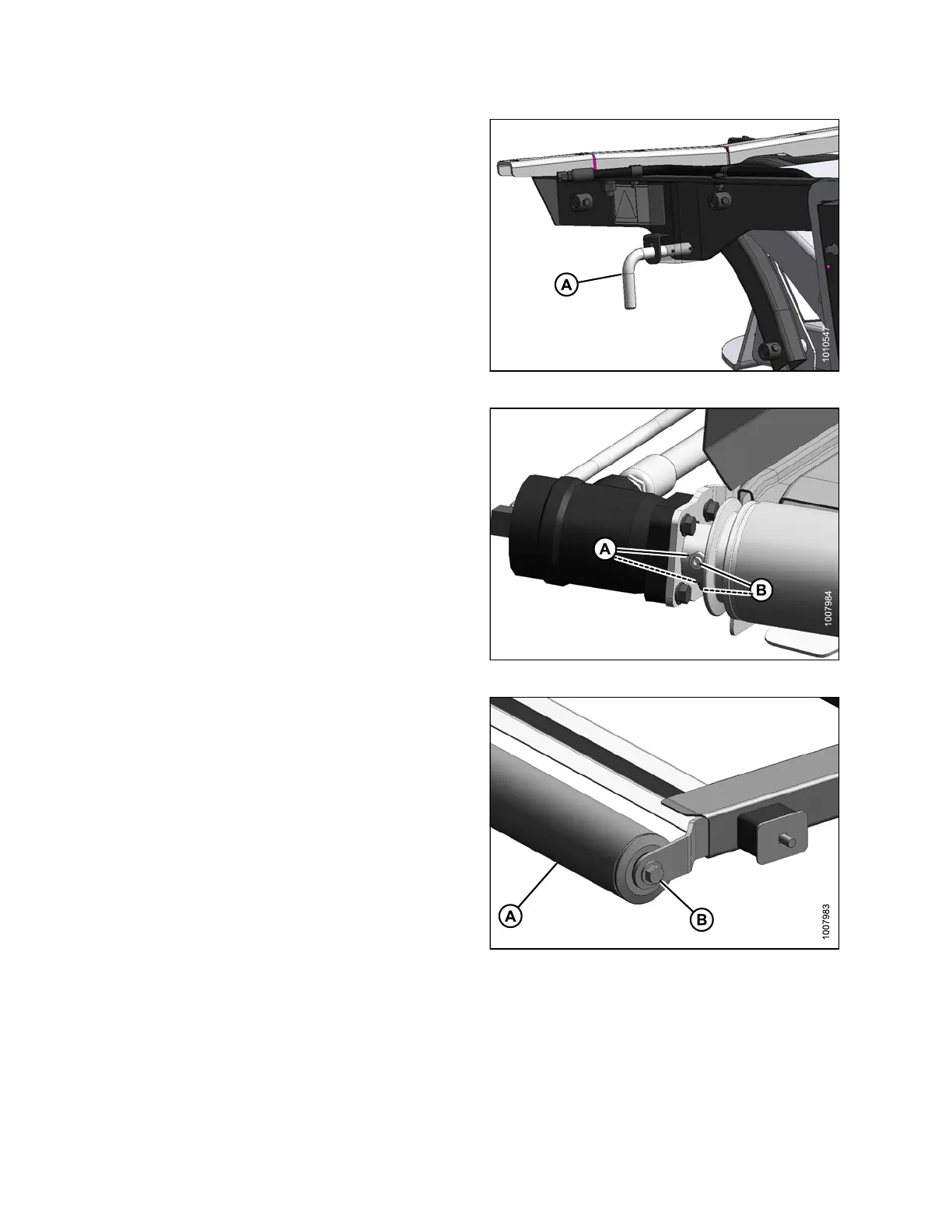

Figure 4.10: Safety Pin
3. Loosen the two jam nuts (A) and set screws (B).
NOTE:
The second
jam nut and set screw are not visible
in this ill
ustration.
Figure 4.11: Draper Drive Roller
4. Remove the bolt and washer (B) at the front of the drive
roller (A). The arm can be pulled out of the deck.
5. Slide the drive roller off the m otor shaft.
6. If you need to repair the bearing or seal, refer to 4.1.8
Replacing Draper Roller Bearing/Seal, page 74.
Figure 4.12: Draper Drive Roller
214049
72
Revision A
