ASSEMBLY/SETUP INSTRUCTIONS
2.6.6 Install
ing Case Drain Hose: M 155/M155E4/M205 with A ll Headers
To connect the case drain hose to the hydraulic reservoir, follow these steps:
1. Remove plug from the top left corner of the hydraulic
reservoir and connect the #10 ORB x # 6 JIC elbow (B)
to the reservoir port.
2. Connect the case drain hose (A) to elbow (B).
3. Proceed to 2.7 Installin g the Auxiliary Valve Blo ck,
page 40.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 92
for additional information on the hydraulic connections.

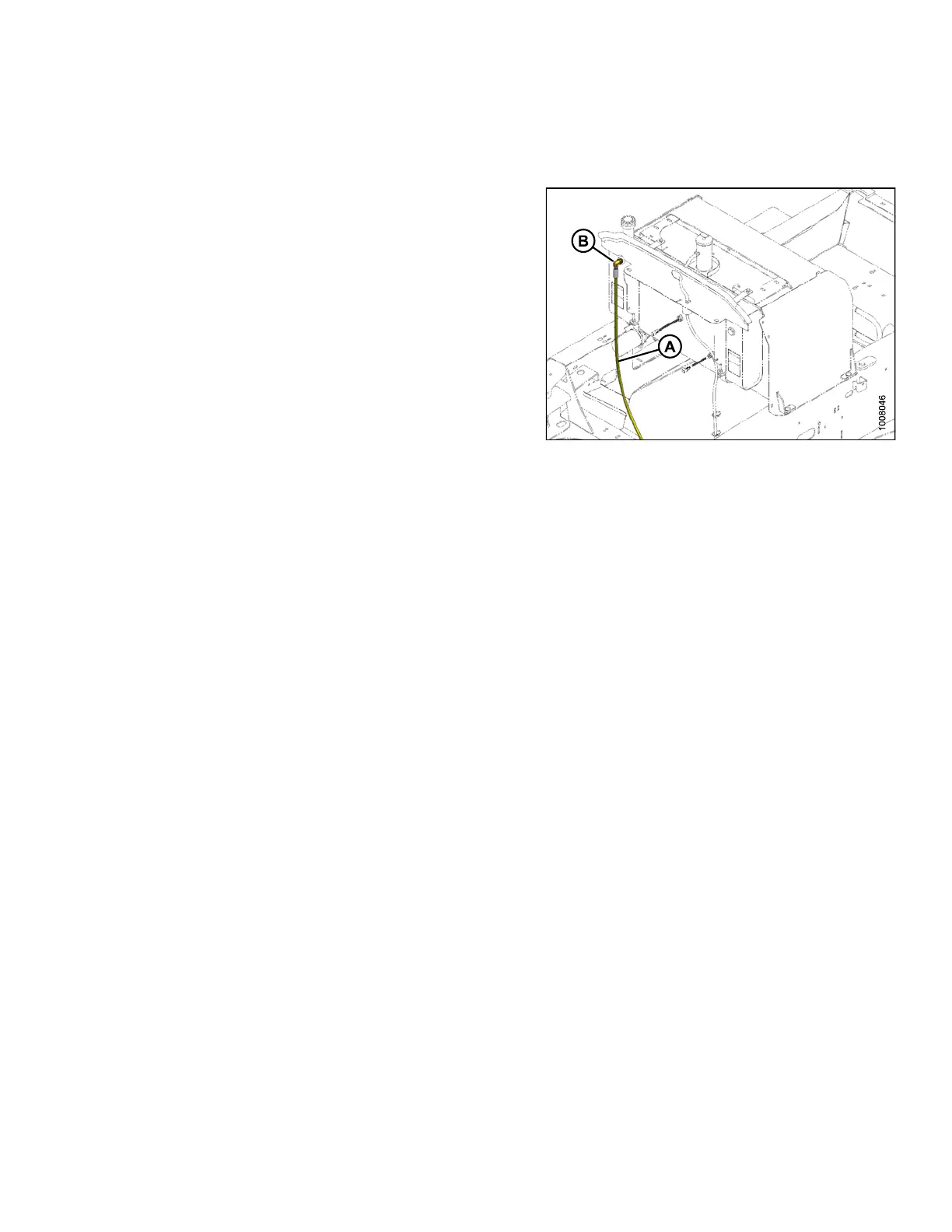

Figure 2.64: Hydraulic R eservoir
214049 39 Revision A
