ASSEMBLY/SETUP INSTRUCTIONS
6. Remove the shipping stand (A) by removing the
transport wire (B).

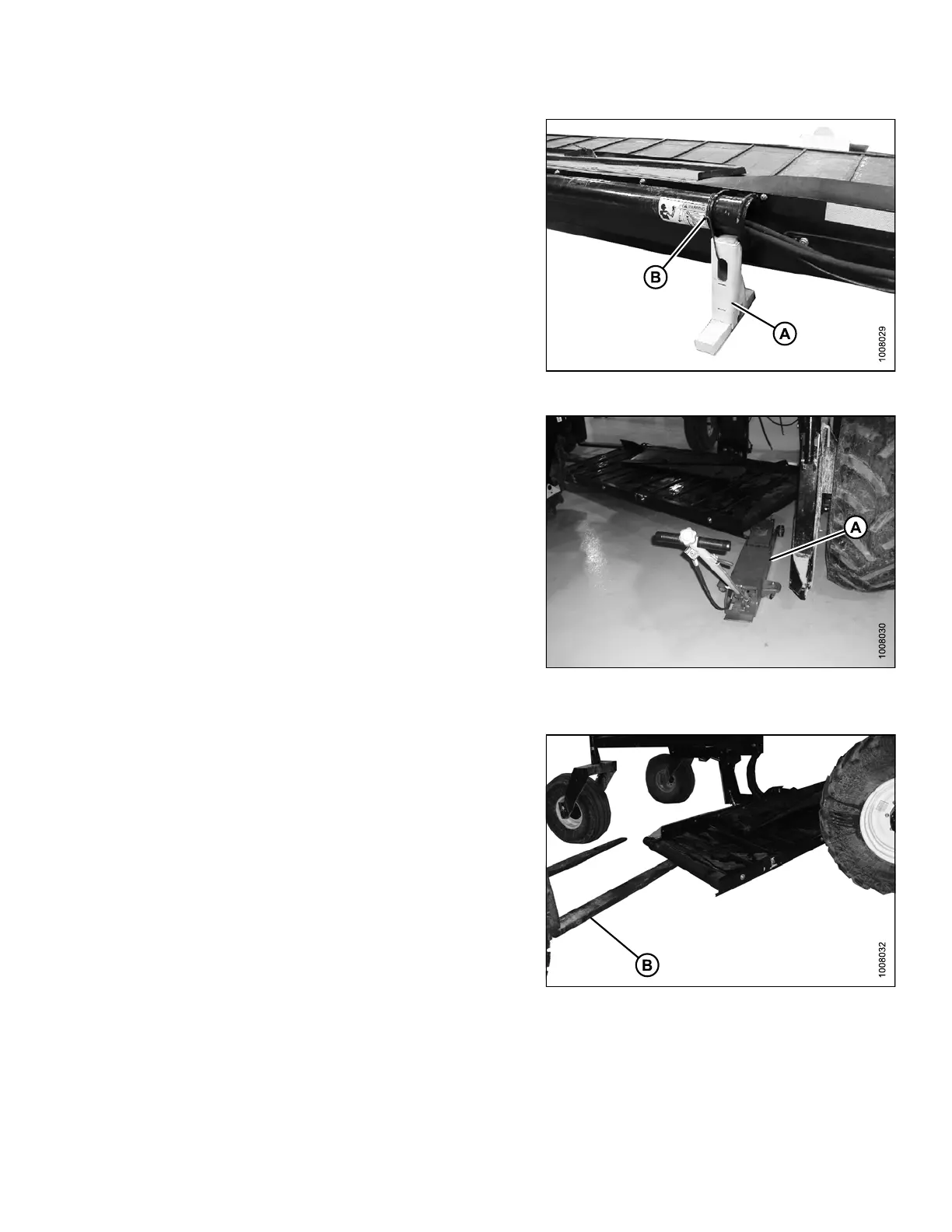

Figure 2.49: Deck Shipping Stand
The DWA deck is now ready to be assembled to the linkage
underneath the windrower.
7. Position the DWA deck on the right-hand side of the
windrower.
8. Support the deck with a floor jack (A) or a fork lift (B) at
each end.
Figure 2.50: DWA Deck Supported with
Floor Jack
Figure 2.51: DWA Deck Supported with Fork Lift
