ASSEMBLY/SETUP IN STRUC TIONS
7. Remove the knockout in cover (A) for the rocker switch
and file down the burrs.

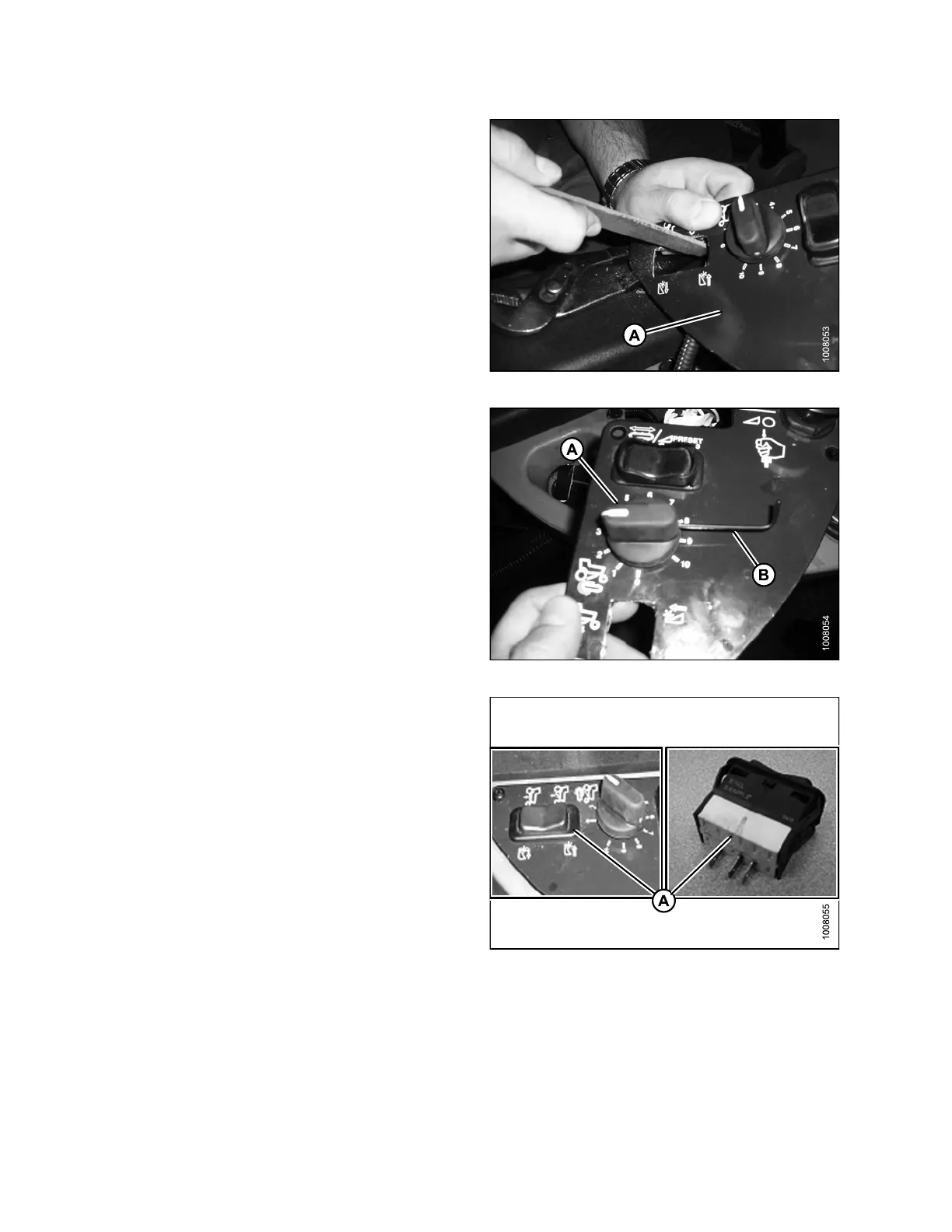

Figure 2.74: Console Control Plate
8. Install knob (A) on the rotary switch and tig hten the set
screw in knob with a hex key (B). (Knob may not be
exactly as shown.)
Figure 2.75: Console Control Plate
9. Install rocker switch (A) in the cover. The side with the
prongs should be next to the operator’s seat.
Figure 2.76: DWA Switch
214049
44
Revision A
