OPERATION
To adjust deck angle:
1. Loosen the four 3/4 in. bolts (A).
NOTE:
The fourth bolt is hidden behind bracket (B) and not
visible in this illustration.
2. Loosen the lo
cking nut (D).
3. To increase
distance between the ground and the deck
tighten nut
(C).
4. To decrease
distance between theground and the deck
loosen nut (
C).
5. After adju
stment, tighten nut (D).
6. Torque the
four 3/4 in. bolts (A) to 332 N·m (245 ft·lbf).

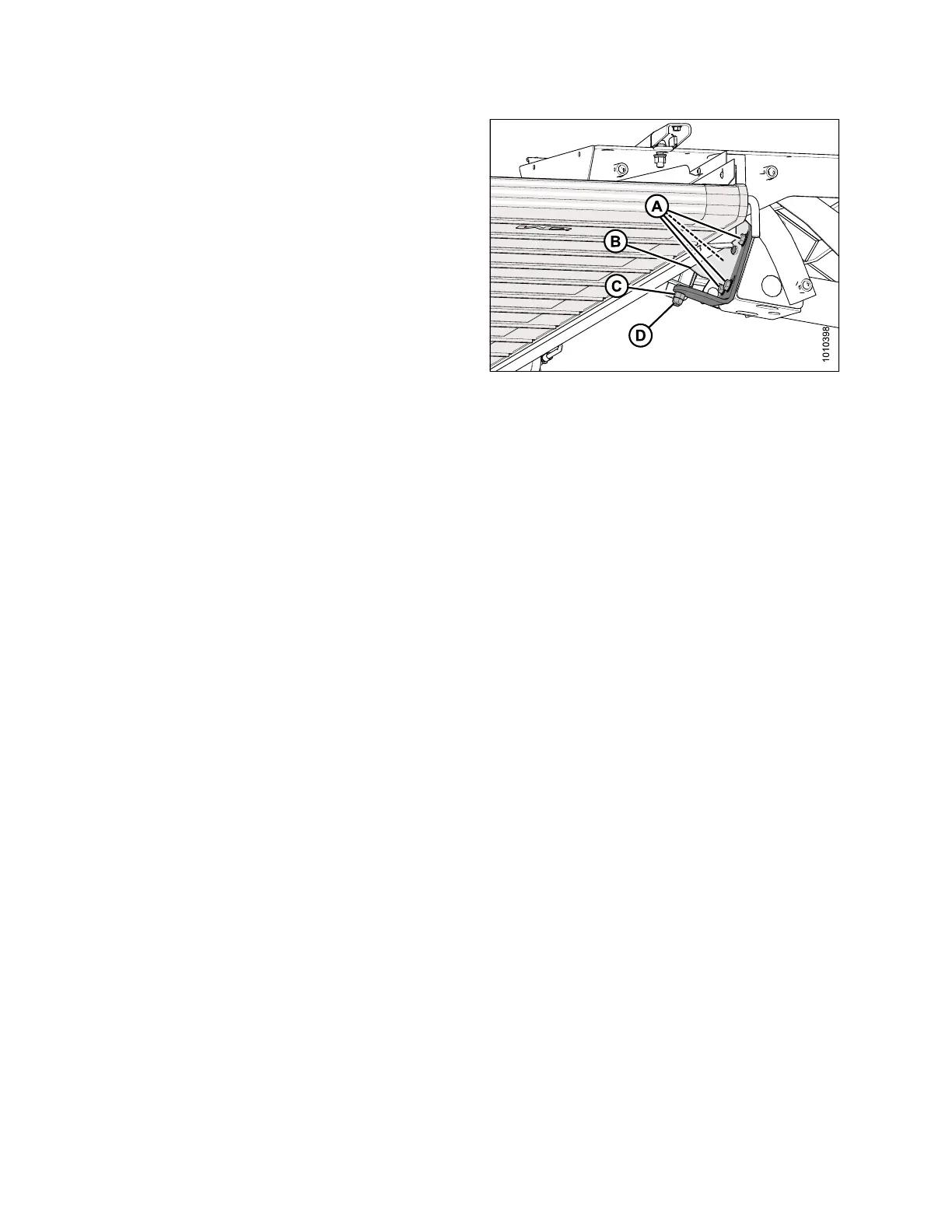

Figure 3.11: Deck Pivot
214049 60 Revision A
