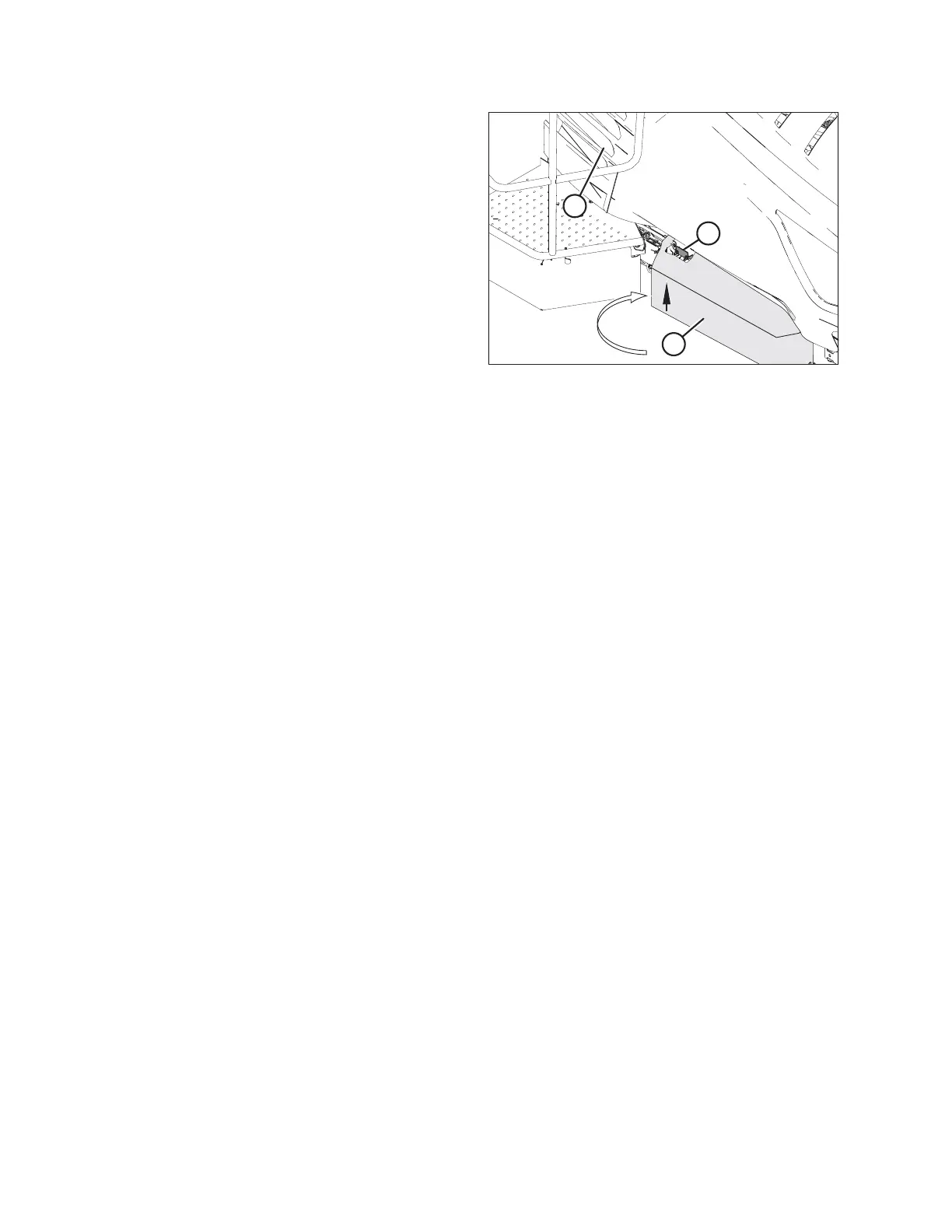

Figure 3.106: Battery Cover Secured
7. Swing cover (A) towards the windrower frame. Lift up on
the cab-end of the cover until it is secured by retaining
tab (B) on the frame.
8. Grasp the hood by louver (C) and lower it until the hood
engages the latch.
IMPORTANT:
To ensure that the hood is latched, make sure that the latch
lever is not tilted.
