2.4 Removing Fuel Tank / Right Platform Shipping Assembly
Follow these instructions to remove the handrails, fuel tank, right platform, and platform stairs. Some hardware is reused
for assembly.

%
$
$

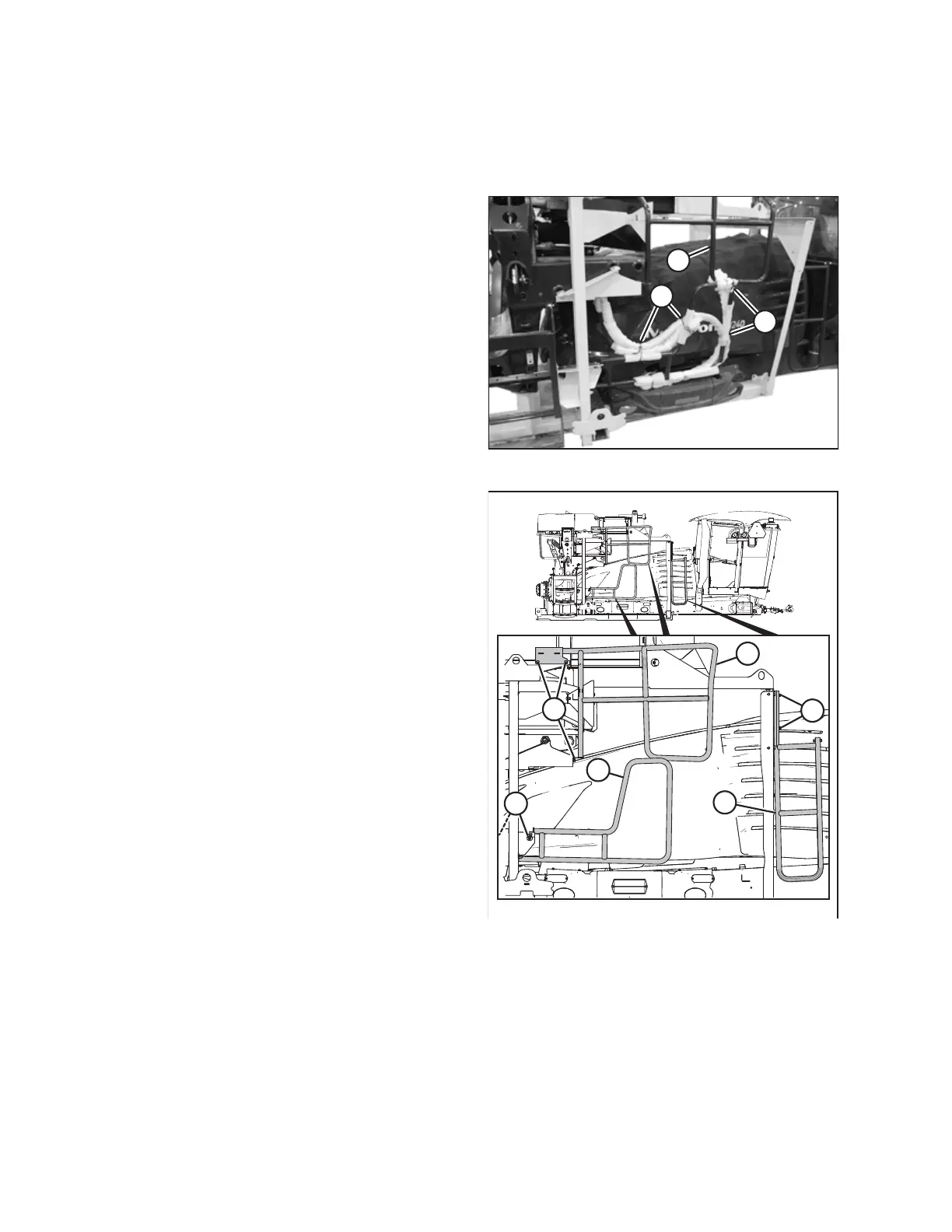

Figure 2.18: Handrails on Right Side
1. On the right side of the machine, remove shipping straps
and wires (A) from handrails (B) and from the hydraulic
hoses. Set the hoses down beside the machine.
$
%
&
'
(
)

Figure 2.19: Handrails on Right Side
2. Supporting upper handrail (A), remove three bolts (B)
securing the handrail to the upper shipping support, and
then set the handrail aside.
3. Supporting lower handrail (C), remove three bolts (D), and
then set the handrail aside.
NOTE:
Use care to prevent handrail (C) from contacting and
scratching the hood.
4. Supporting handrail (E), remove two bolts (F), and then set
the handrail aside. Retain bolts.
