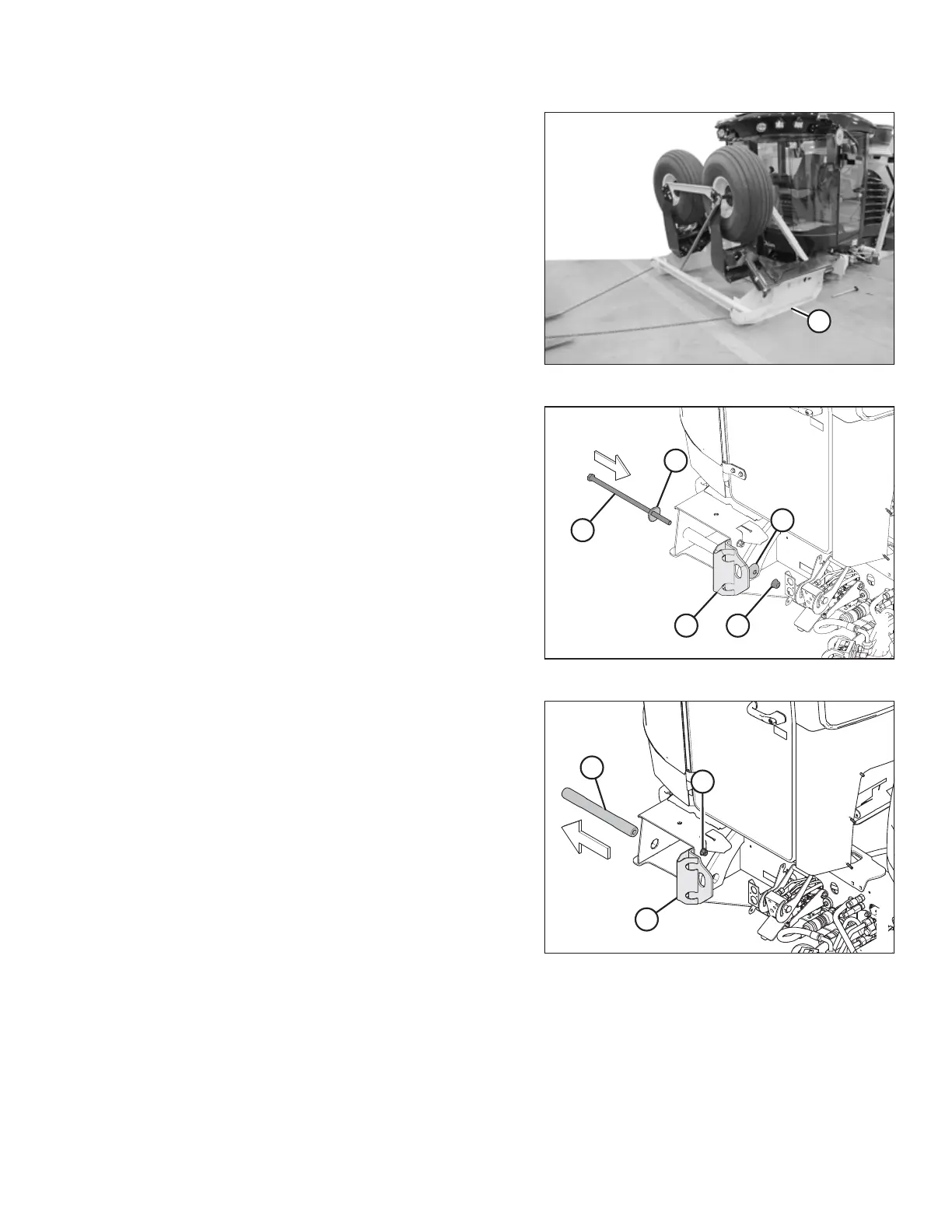

Figure 2.15: Caster Wheel Assembly
7. Ensuring that the center-link does NOT snag the front skids,
use chains or cables to drag caster wheel shipping
assembly (A) away from the windrower.
Figure 2.16: Reinstalling Leg Pin Bolt – Crane Lift Only
8. If moving with a crane: reinstall wheel leg pin bolts (A),
caps (B), and nuts (C) to secure lifting plates (D) on
both sides.
Figure 2.17: Removing Lifting Plates
9. If moving with a forklift: remove bolt (A) from lifting
plate (C), slide pin (B) out and retain for reuse. Remove
lifting plates (C) on both sides.
UNLOADING WINDROWER
