MacDon M1 Series - Auger;Rotary Disc;Draper-Ready Configuration - Quick Coupler Connections

215620 184 Revision A

$$

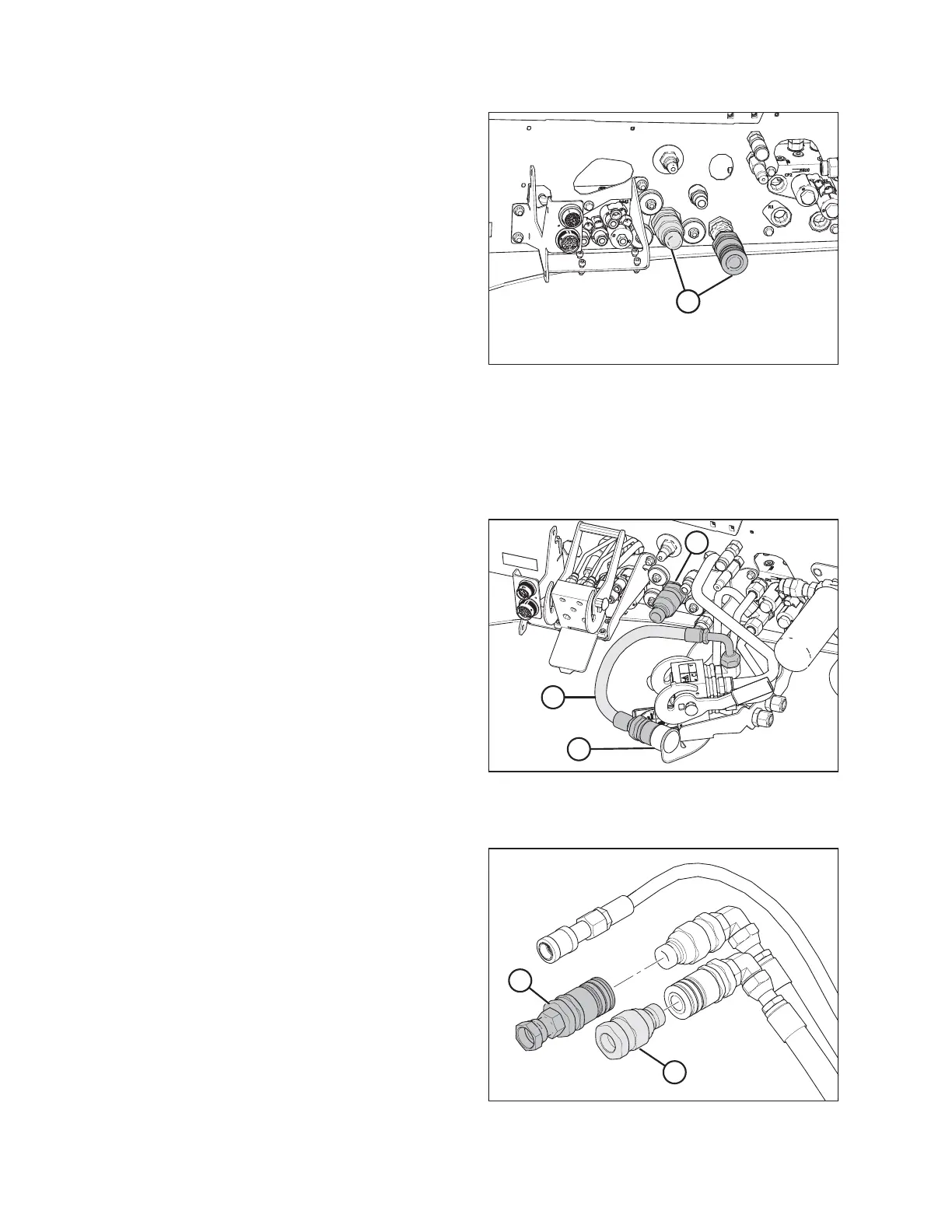

Figure 5.139: Header Hydraulics Configuration –
Rotary Disc-Ready with Quick Couplers
• Rotary disc ready configuration with quick couplers (A): For
instructions, refer to Rotary Disc Only Configuration – Quick
Coupler Connections, page 188.
Auger/Rotary Disc/Draper-Ready Configuration – Quick Coupler Connections
Windrowers with the auger/rotary disc/draper-ready configuration are equipped with the hydraulic connections needed to
pair with an auger, rotary disc, or a draper header.

$
%
&
Figure 5.140: Couplers – Auger/Rotary/Draper
Header-Ready Configuration with Case Drain Kit
Installed
1. Ensure that hose (A) is disconnected from windrower
receptacle (B) and placed in storage cup (C) on the
multicoupler.

$
%
Figure 5.141: Hydraulic Quick Couplers
2. Remove the extra hydraulic quick couplers from pressure
hose (A) and return hose (B). These can be stored and used
as replacement parts.
NOTE:
It is normal to have an extra set of quick couplers on
windrowers with the auger/rotary disc/draper-ready
configuration.
ATTACHING A HEADER TO THE WINDROWER
