3.7 Connecting Wheel Leg Hydraulics and Electrical System
Reconnect the wheel leg hydraulic and electrical connections that were disconnected for shipping purposes.
NOTE:
A bag containing 14 medium cable ties (MD #21763) and 1 large cable tie (MD #30753) is shipped inside the windrower
cab. This procedure requires medium cable ties.
Junction manifold hydraulic connections

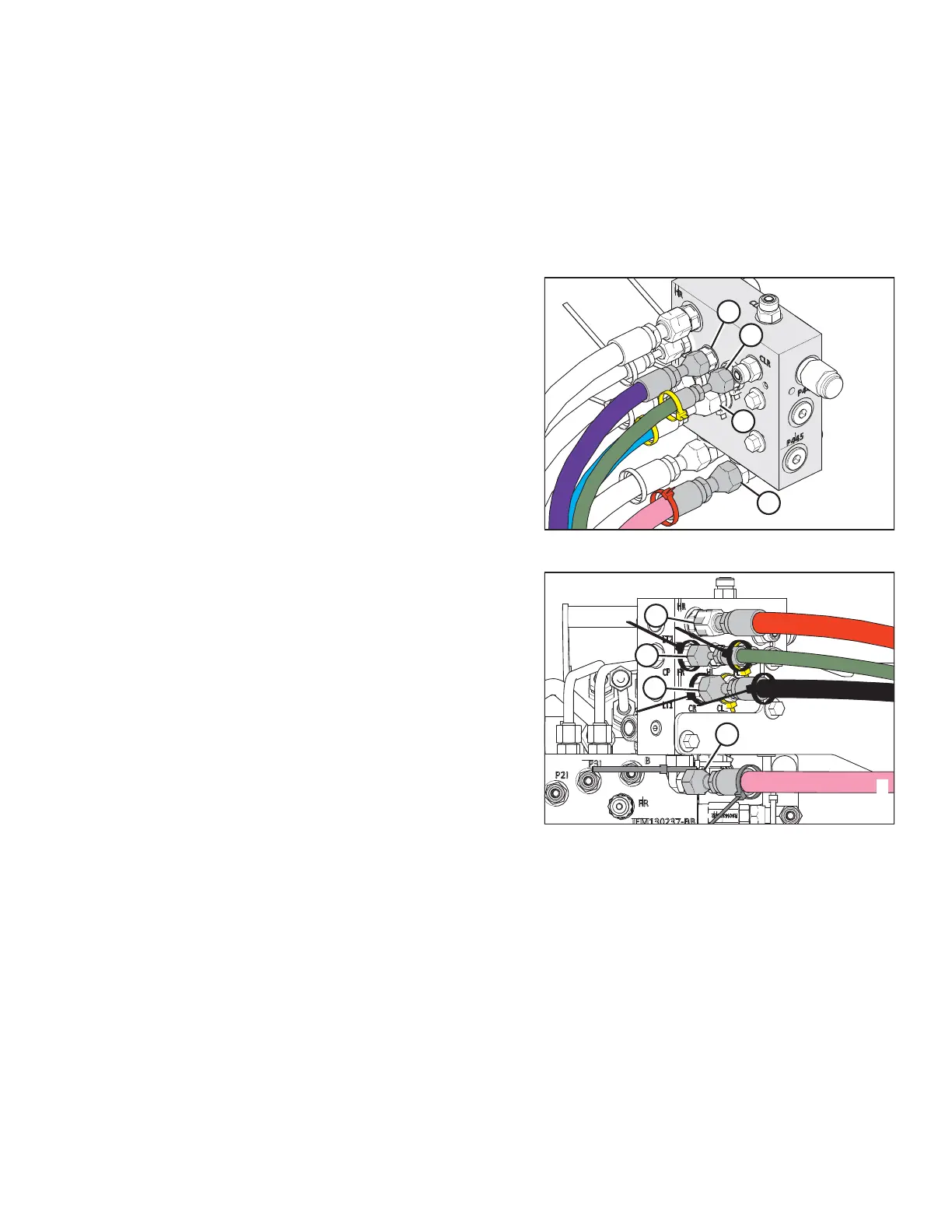

Figure 3.33: Junction Manifold Left Leg Hoses
1. Connect hoses from the left wheel leg to the junction
manifold as follows:
a. Connect the 3/8 in. internal diameter (ID) lift hose (A)
with no cable tie to port HL.
b. Connect the 1/4 in. ID float hose (B) marked with a
yellow cable tie to port FL.
c. Connect the 3/8 in. ID lift hose (C) marked with a
yellow cable tie to port CL.
d. Connect the 1/2 in. ID case drain hose (D) marked with
a red cable tie to port MDL.
Figure 3.34: Junction Manifold Right Leg Hoses
2. Connect hoses from the right wheel leg to the junction
manifold as follows:
a. Connect the 1/2 in. internal diameter (ID) lift hose (A)
with no cable tie to port HR.
b. Connect the 1/4 in. ID float hose (B) marked with a
black cable tie to port FR.
c. Connect the 3/8 in. ID lift hose (C) marked with a black
cable tie to port CR.
d. Connect the 1/2 in. ID case drain hose (D) marked with
a blue cable tie to port MDR.
ASSEMBLING WINDROWER
