3.10 Connecting Fuel and Diesel Exhaust Fluid Tanks
Reconnect the hoses and electrical connections to the right platform fuel / diesel exhaust fluid (DEF) tank assembly that
were disconnected for shipping purposes.

$
%

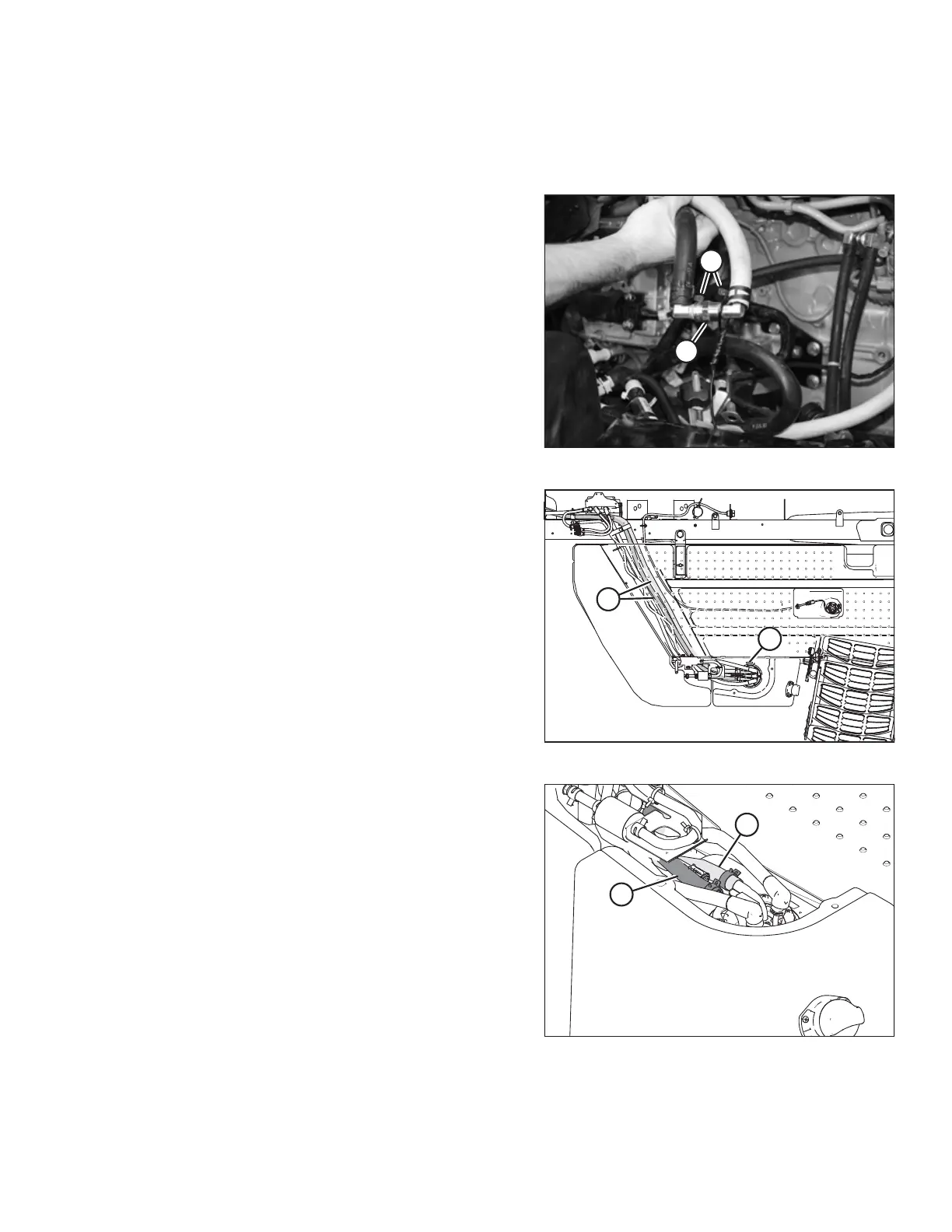

Figure 3.66: DEF Heater Hoses with Transport Fitting
1. Unwrap the packing material from the fuel and DEF hose
bundles.
2. Remove and discard transport fitting (A) and separate the
DEF heater hoses. Retain hose clamps (B) for installation.
3. Clamp the DEF heater hoses to prevent spilling the coolant.

$
%
Figure 3.67: Hose Routing
4. Route DEF heater hoses (A) under platform to DEF head (B).
Use a fish wire if necessary.
NOTE:
Platform is transparent in the illustration at right.

$
%
Figure 3.68: DEF Head Connections
5. Using existing hose clamps, connect black heater hose (A)
to the DEF head port with black tie; connect red heater
hose (B) to the remaining connector.
