215620 48 Revision A
3.3 Installing Wheel Legs
The right and left wheel legs are large components that must be installed before assembling the windrower any further.
DANGER
Objects are heavy and difficult to maneuver. Use a proper lifting device and arrange for adequate assistance. Falling
objects can result in serious personal injury.

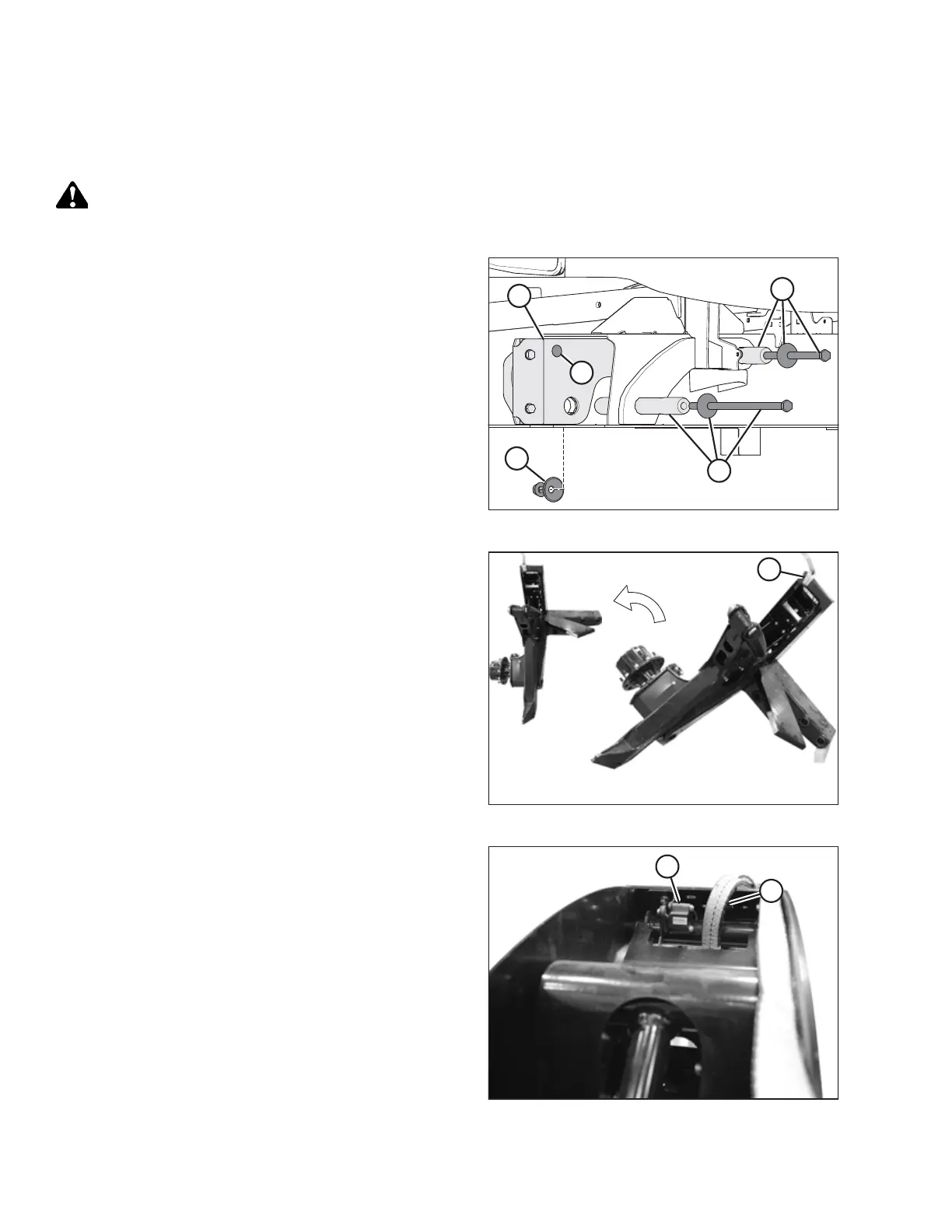

Figure 3.7: Wheel Leg Pin
1. Remove the inboard leg bolt, nut, two caps, and pin (A),
and retain for leg installation.
NOTE:
If lifting with a forklift, the outboard pin was removed
previously.
2. If lifting with a crane: remove bolt, nut, two caps, and
pin (B). Retain for installation.
3. If lifting with a crane: remove carriage bolt (C) and lifting
plate (D).
Figure 3.8: Wheel Leg
4. Remove shipping material from the hydraulic and electrical
bundle on wheel leg.
5. Attach lifting strap (A) to the top of the wheel leg, and use
a suitable lifting device to stand it upright.
Figure 3.9: Top of Wheel Leg
NOTE:
Ensure strap (A) will not hit sensor (B) when lifting the leg.
ASSEMBLING WINDROWER
