215620 47 Revision A

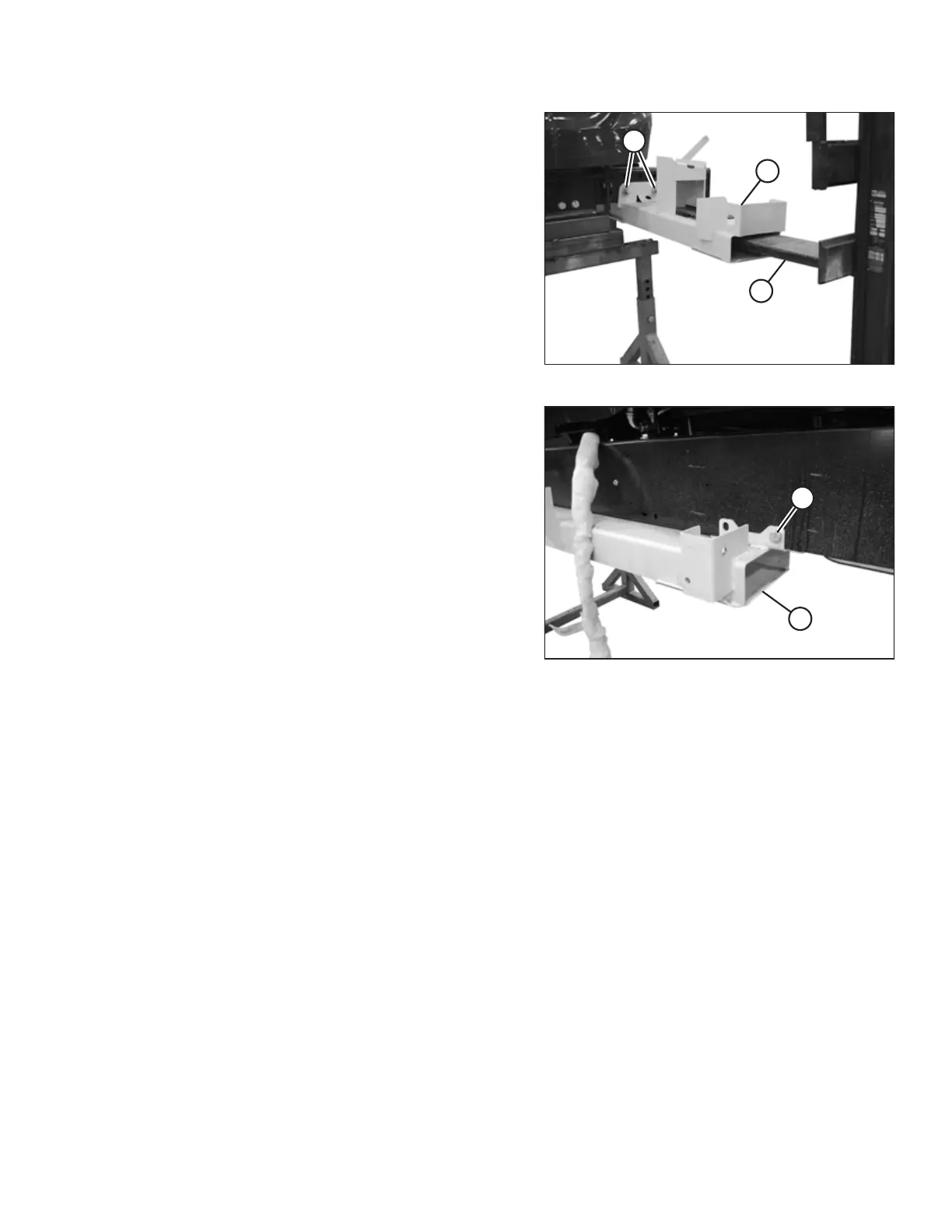

Figure 3.5: Supporting Fork Channel
3. Support fork channel (A) with a suitable lifting device (B),
and remove two bolts (C) from the walking beam.
Figure 3.6: Fork Channel
4. Remove bolt (A) from the forward end of fork channel (B)
at the side of the machine.
5. Ensure the hoses and electrical harnesses do not catch the
lower fork channel, and move it away from the windrower.
6. Repeat on the opposite side.
ASSEMBLING WINDROWER
