215620 155 Revision A

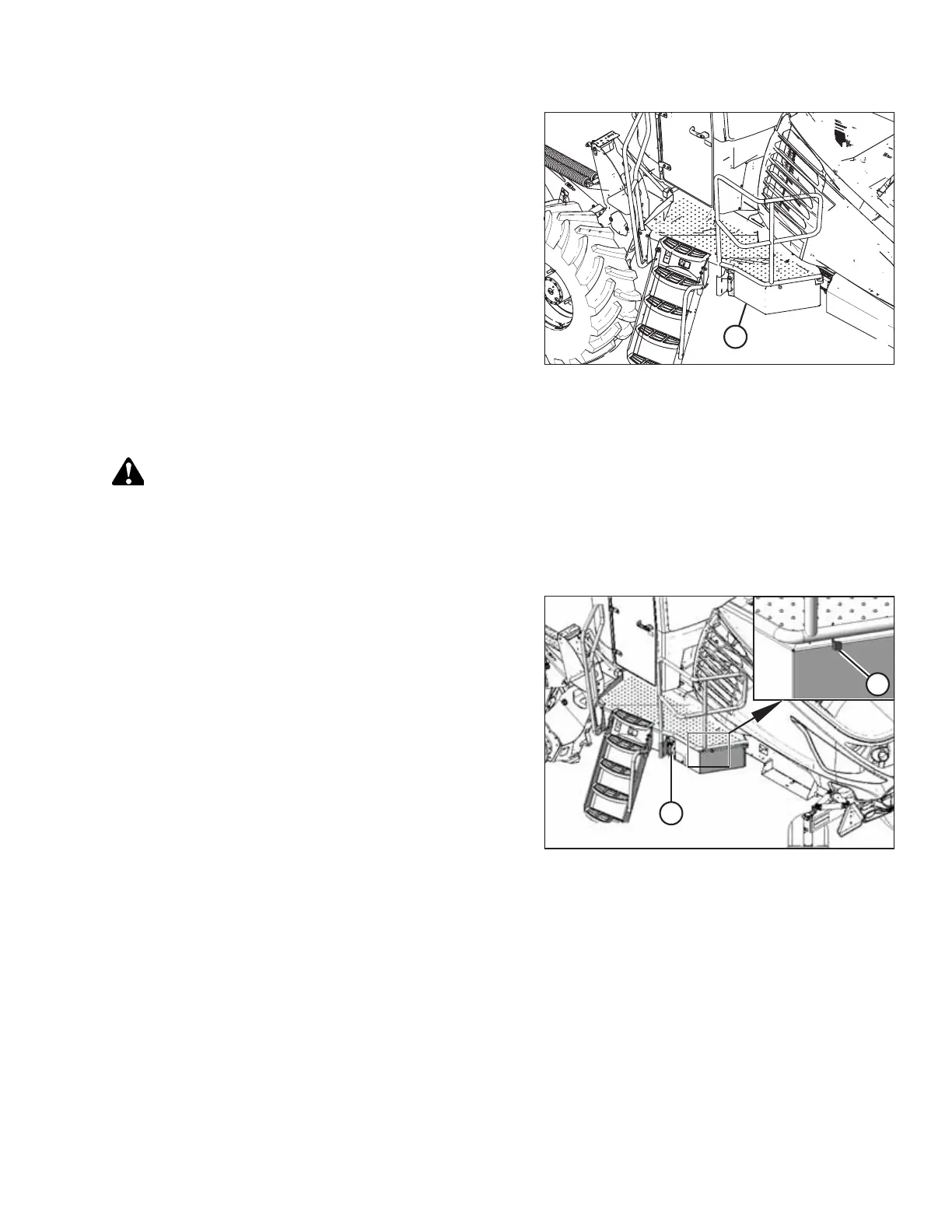

Figure 5.65: Left Cab-Forward Platform
16. Pull platform (A) towards the cab until it stops and the latch
is engaged.
5.2.4 Detaching D1X or D1XL Series Draper Header
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Lower the header fully.
2. Shut down the engine, and remove the key from the ignition.
Figure 5.66: Left Cab-Forward Platform
3. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
4. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
ATTACHING A HEADER TO THE WINDROWER
