215620 156 Revision A

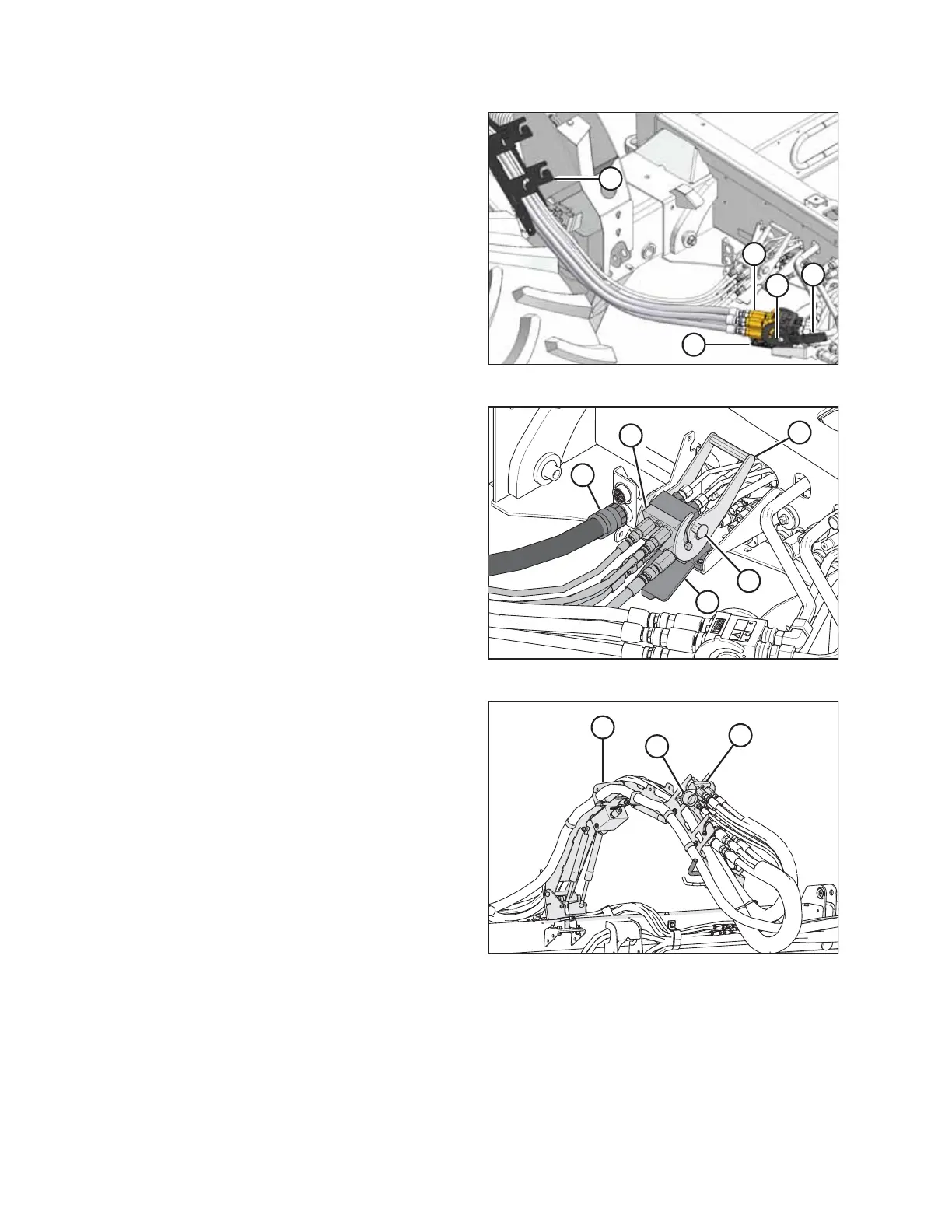

Figure 5.67: Knife/Reel Drive Multicoupler
5. Push lock button (A) and pull handle (B) to disengage
multicoupler (C). Disconnect the hydraulics from the rear
knife/reel drive receptacle.
NOTE:
Firmly hold handle (B) when disconnecting multicoupler (C).
Pressure may cause the handle to kick back with force.
6. Route knife/reel drive hose bundle back to storage
position (D) on the hydraulic hose management system.
7. Remove any debris that may have accumulated on the
receptacle. Close cover (E).
Figure 5.68: Draper/Reel Multicoupler
8. Push lock button (B), and pull handle (C) to disengage
multicoupler (A). Disconnect the hydraulics from the
windrower draper drive/reel lift receptacle.
9. Disconnect electrical connector (E).
10. Remove any debris that may have accumulated on the
windrower front receptacle, and close cover (D).
Figure 5.69: Hydraulic Hose Management System
11. Route draper drive/reel hose bundle back to storage
position (A) on hydraulic hose management system (B).
12. Insert electrical connector into storage cup (C).
ATTACHING A HEADER TO THE WINDROWER
