3.5 Installing Caster Wheels
Install the two caster wheels onto the walking beam near the engine.
Installing right caster wheel

$
%
%

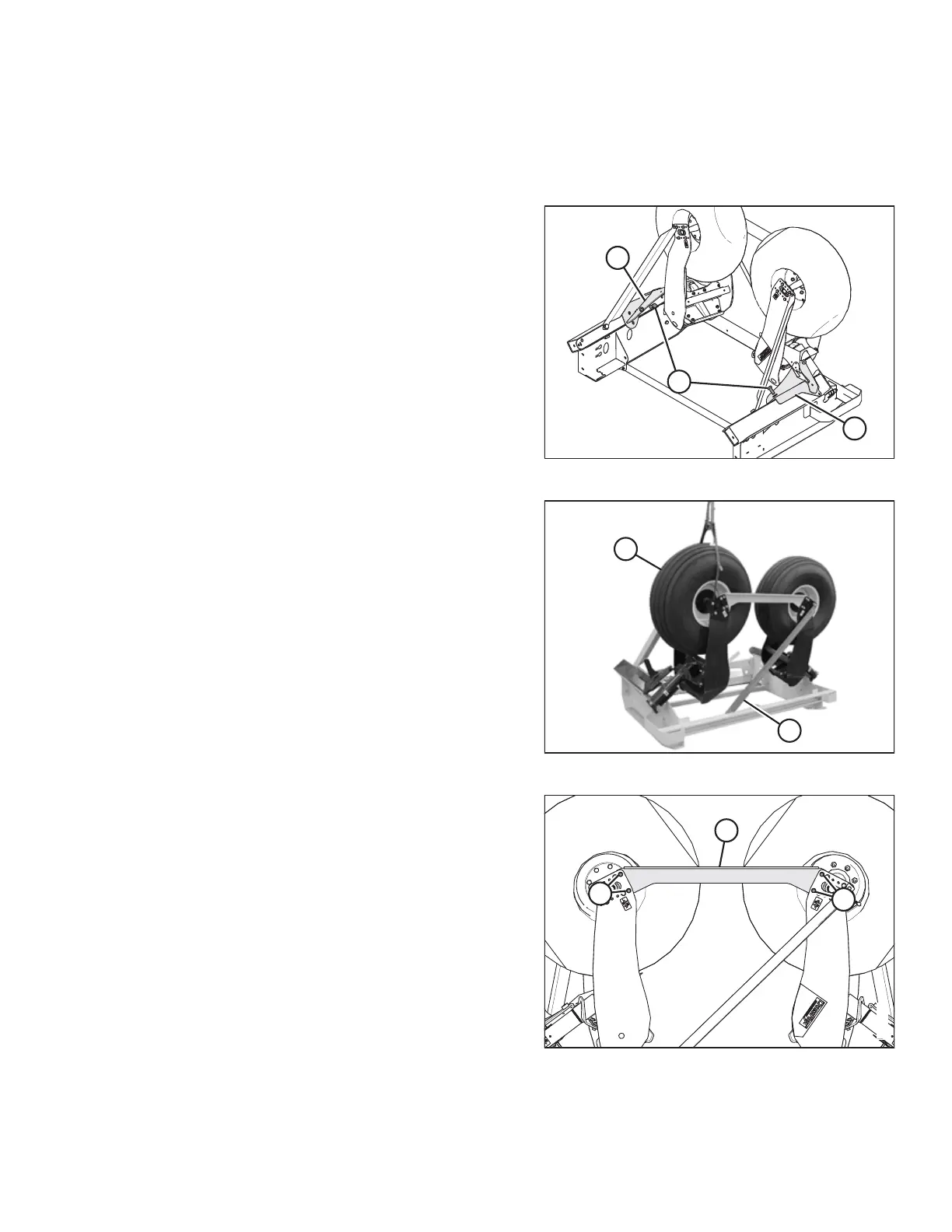

Figure 3.18: Anti-Shimmy Dampener Bracket
1. Remove bolts (A) securing anti-shimmy dampener
brackets (B) to shipping stand. Retain the two M24 bolts
and washers for installation.

$
%
Figure 3.19: Caster Wheels Shipping Assembly
2. Use a suitable lifting device to support right caster
wheel (A). Do NOT remove angled support (B).

$
$
%
Figure 3.20: Caster Wheels Shipping Assembly
3. Remove and discard four bolts (A), and remove horizontal
strap (B) between caster wheels.
