215620 209 Revision A

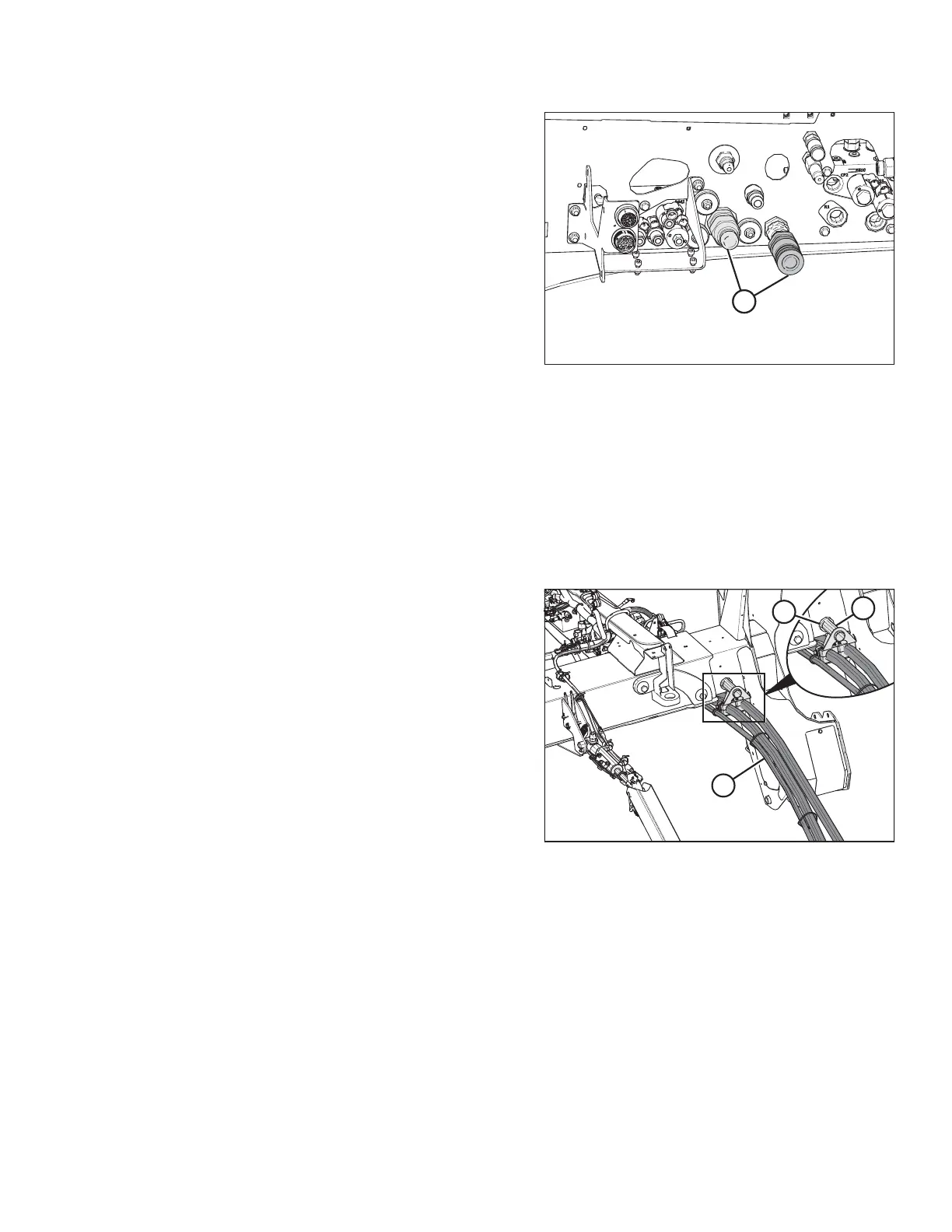

Figure 5.204: Header Hydraulics Configuration –
Rotary Disc-Ready with Quick Couplers
• Rotary disc-ready configuration with quick couplers (A): For
instructions, refer to Rotary Disc Only Configuration – Quick
Coupler Connections, page 217.
Auger/Rotary Disc/Draper-Ready Configuration – Quick Coupler Connections
Windrowers with the auger/rotary disc/draper-ready configuration are equipped with the hydraulic connections needed to
pair with an auger, rotary disc or a draper header.
IMPORTANT:
To prevent contamination of the hydraulic system, use a clean rag to remove dirt and moisture from all (fixed and
movable) hydraulic couplers.
Figure 5.205: Hose Support Attachment
1. Retrieve hydraulic hoses (A) from the header and route the
hose bundle under the windrower frame.
NOTE:
Adding anti-seize compound to the hose holder pin will
make future removal easier.
2. Insert pin (B) into hole (C) in the windrower frame.
IMPORTANT:
Route the hydraulic hoses as straight as possible, avoiding
wear points that could damage the hoses. To prevent
abrasion damage, the hoses should have enough slack to
pass by the multicoupler bracket without contacting it. To
adjust the slack in the hoses, loosen the clamps below
pin (B), adjust the hoses, then retighten the hose holder.
ATTACHING A HEADER TO THE WINDROWER
