MacDon M1 Series - O-Ring Boss Hydraulic Fittings - Adjustable

215620 243 Revision A
6.3.3 O-Ring Boss Hydraulic Fittings – Adjustable
The standard torque values are provided for adjustable hydraulic fittings. If a procedure specifies a different torque value
for the same type and size of fitting found in this topic, use the value specified in the procedure instead.

$
%
&
'

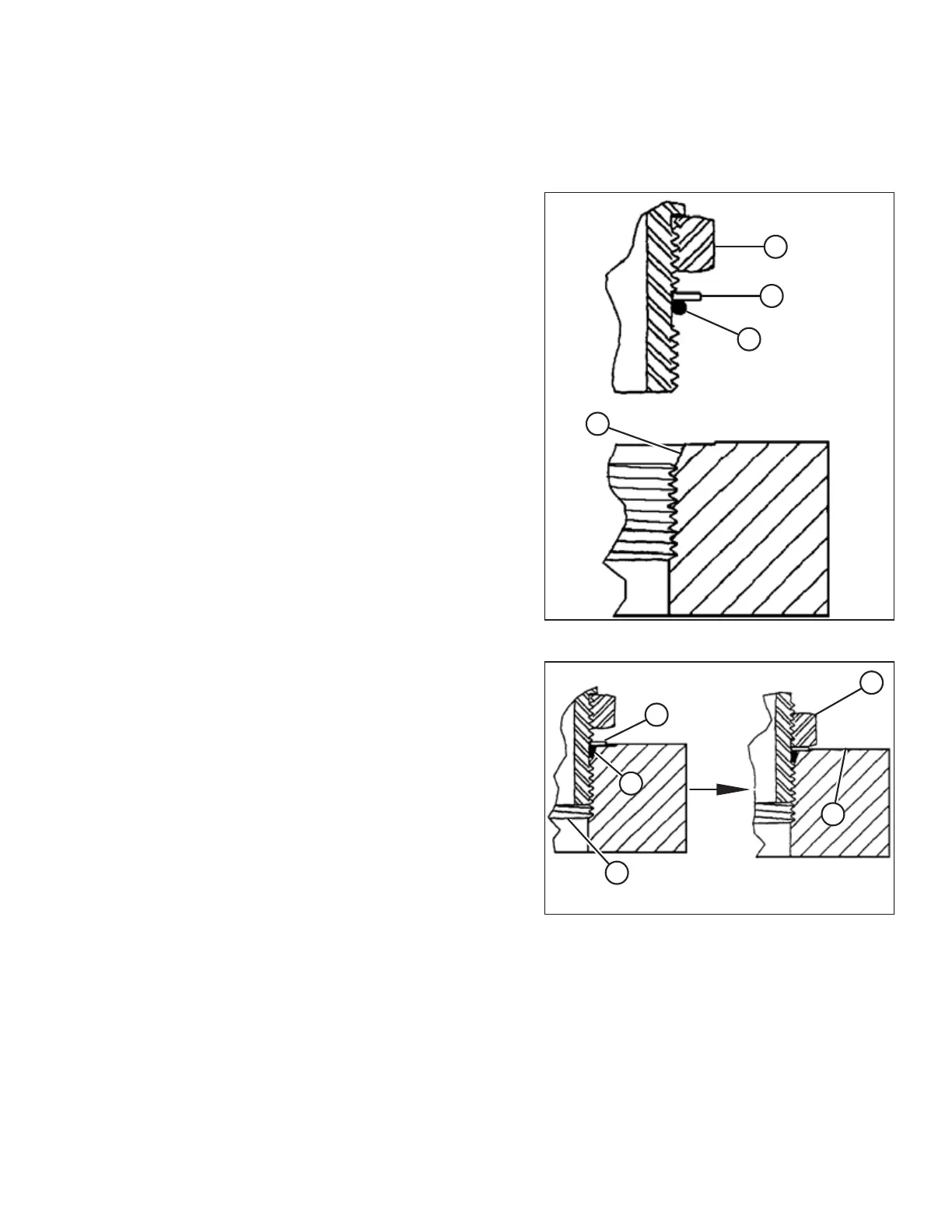

Figure 6.6: Hydraulic Fitting
1. Inspect O-ring (A) and seat (B) for dirt or obvious defects.
2. Back off lock nut (C) as far as possible. Ensure that
washer (D) is loose and is pushed toward lock nut (C) as far
as possible.
3. Check that O-ring (A) is NOT on the threads. Adjust O-
ring (A) if necessary.
4. Apply hydraulic system oil to O-ring (A).

'
$
(
%
&
Figure 6.7: Hydraulic Fitting
5. Install fitting (B) into the port until backup washer (D) and
O-ring (A) contact part face (E).
6. Position the angle fittings by unscrewing no more than
one turn.
7. Turn lock nut (C) down to washer (D) and tighten it to the
torque value indicated in the table. Use two wrenches, one
on fitting (B) and the other on lock nut (C).
8. Check the final condition of the fitting.
