2.3 Removing Caster Wheel Shipping Assembly
The caster wheels are assembled together for shipping purposes. This shipping assembly needs to be pulled away from the
windrower.

$

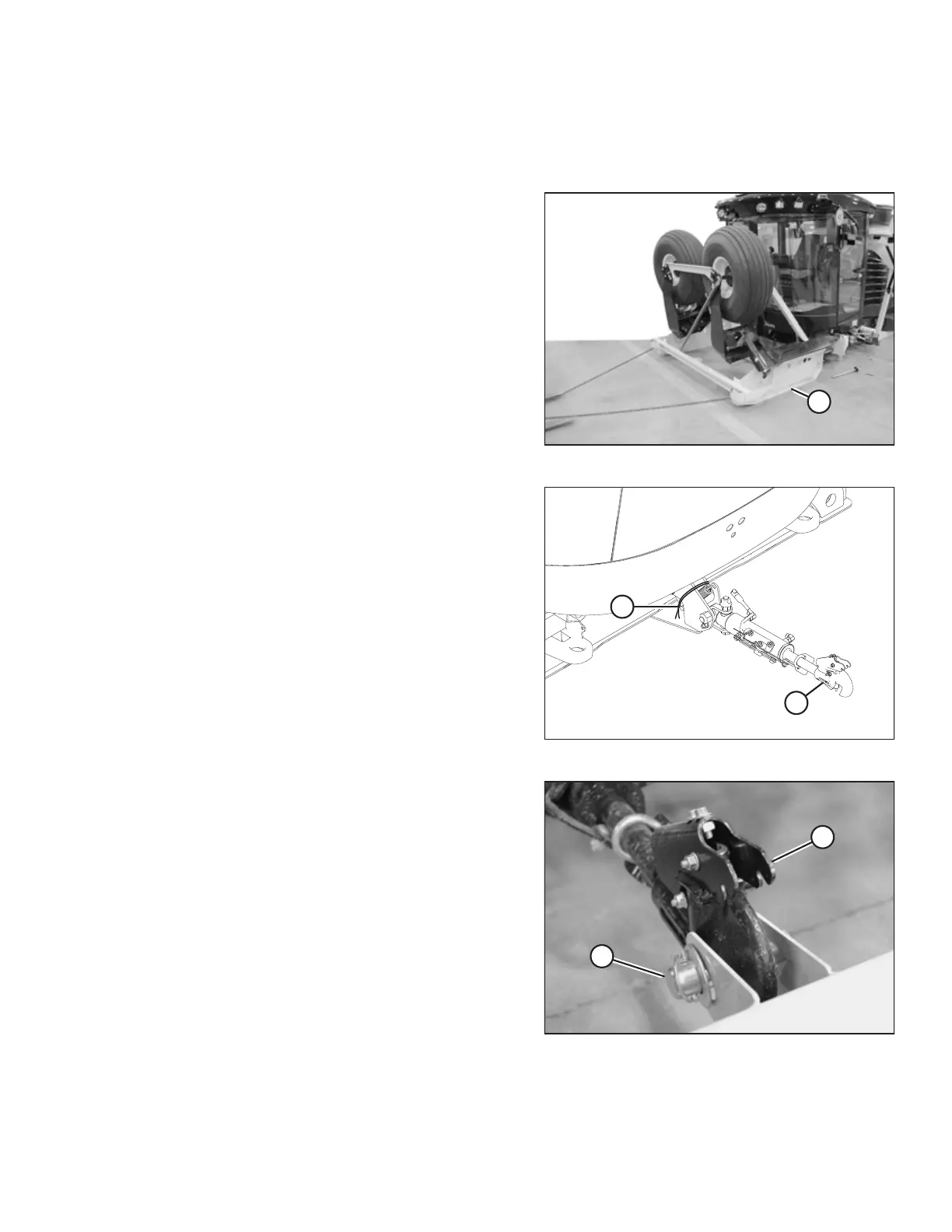

Figure 2.9: Caster Wheel Assembly
1. Locate caster wheel shipping assembly (A).

$
%
Figure 2.10: Center-Link
2. Remove shipping wire (A) securing center-link (B).

$
%
Figure 2.11: Center-Link
3. Disconnect center-link (A), and discard the pin and
hardware (B).
