DANGER
Be sure forks are secure before moving away from load. Stand clear when lifting.

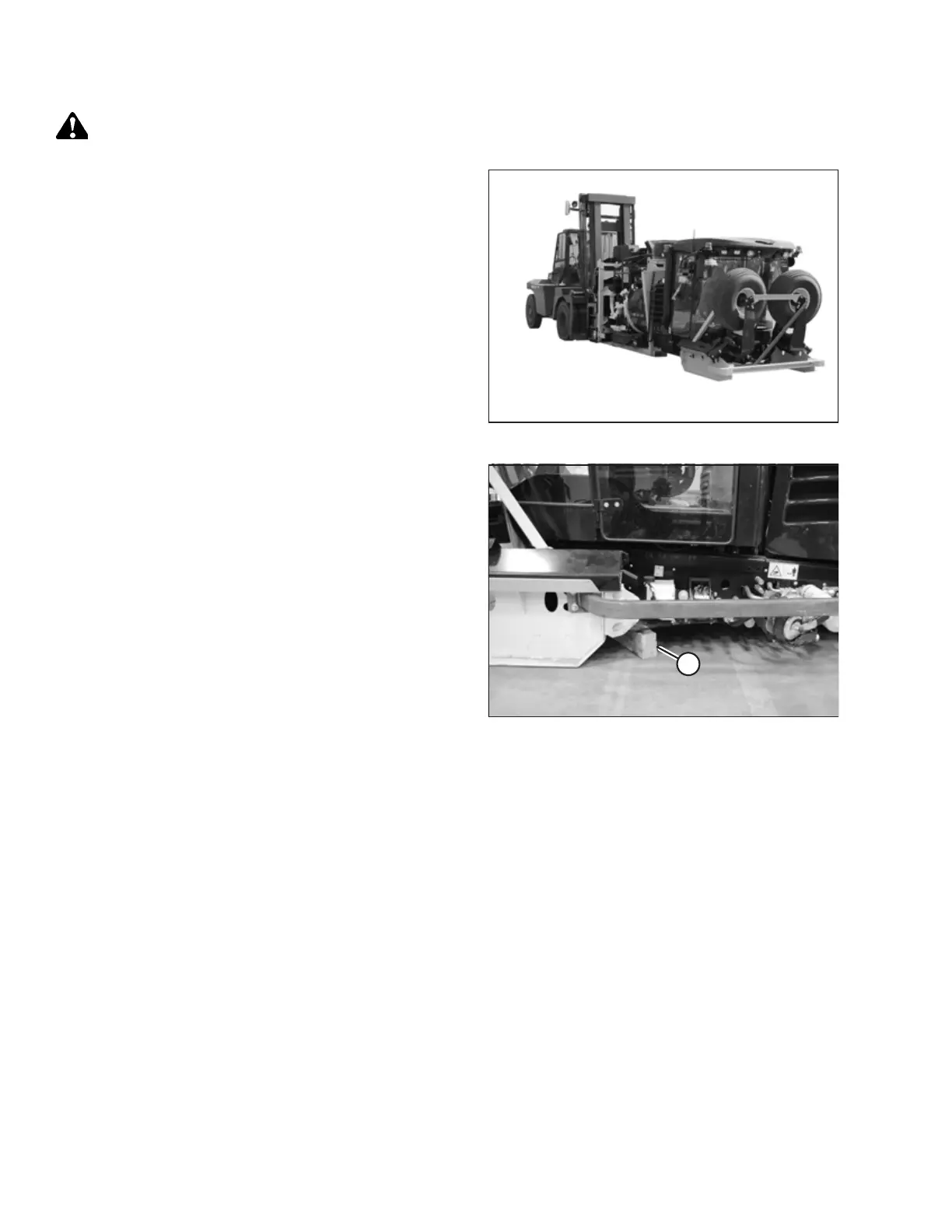

Figure 2.7: Forklift Method Lifting Points
1. Approach the windrower from the hood end and slide forks
underneath the lifting framework.
2. Raise the windrower off the platform and move it to the
assembly area.
Figure 2.8: Windrower Shipping Assembly on Blocks
3. Lower the windrower onto 152 mm (6 in.) blocks (A)
as shown.
4. Check for shipping damage and missing parts.
UNLOADING WINDROWER
