MacDon M1 Series - Removing Remaining Items from Shipping Configuration

215620 46 Revision A
3.2 Removing Remaining Items from Shipping Configuration
With the windrower on the assembly lift stand, remove the rear lighting bezel, cab suspension shipping supports, and fork
channels.

$

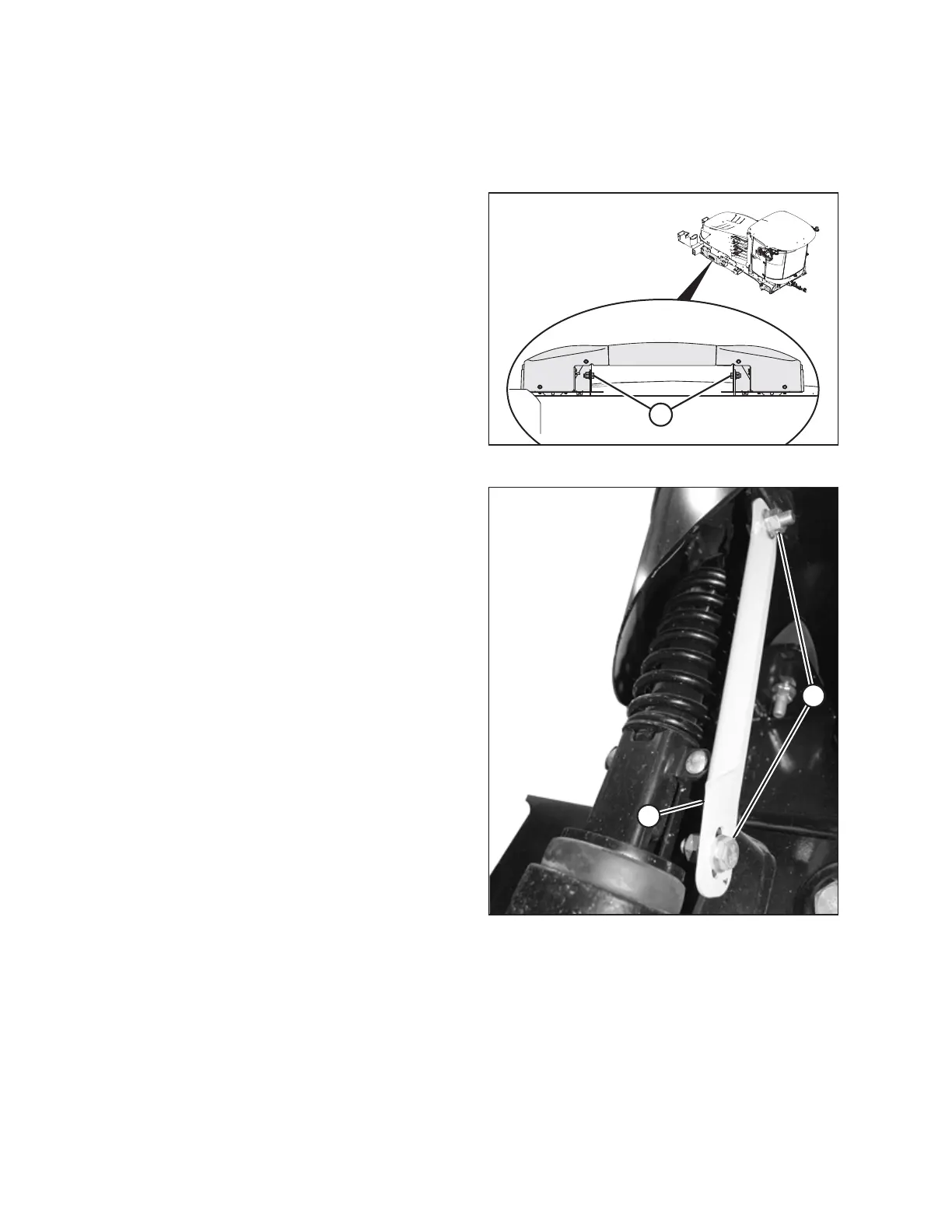

Figure 3.3: Rear Light Bezel
1. On the right side of the machine, remove two bolts (A)
securing the rear lighting bezel, and then remove the bezel.
Retain two nuts for installation, but discard the bolts.

%
$
Figure 3.4: Right Cab Suspension Support
2. Remove two bolts and nuts (A), and cab suspension
shipping support (B) from below the front cab. Repeat on
the opposite side.
ASSEMBLING WINDROWER
