215620 154 Revision A

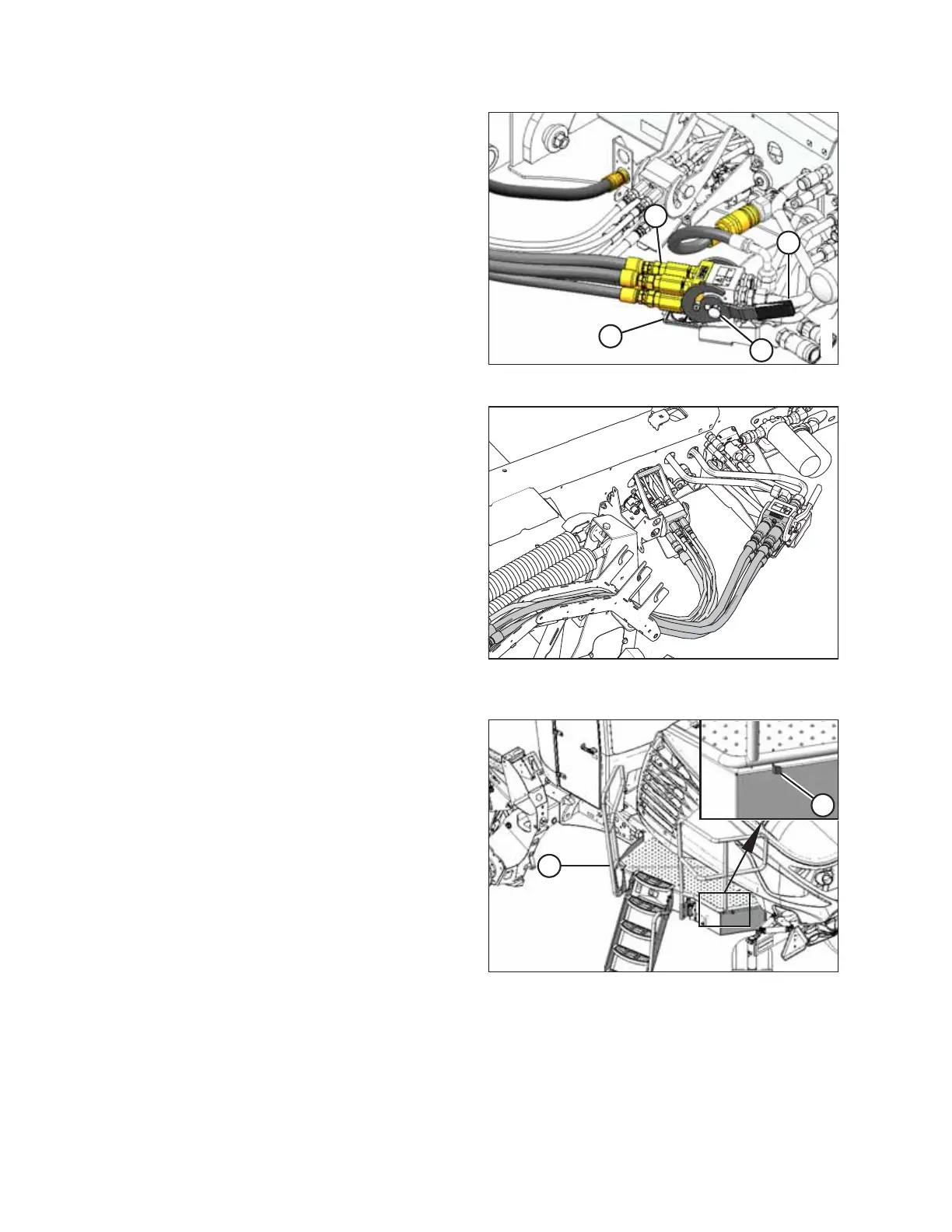

Figure 5.62: Knife/Reel Drive Multicoupler
11. Retrieve knife and reel drive multicoupler (A) from the
hydraulic hose management system.
12. Push knob (B) on the hydraulic receptacle and pull
handle (C) fully away from the windrower.
13. Open cover (D) and position the coupler onto the
receptacle. Align the pins in the coupler with the slots in
handle (C), and push the handle toward the windrower so
that the coupler locks onto the receptacle and knob (B)
snaps out.
Figure 5.63: Hydraulic Multicouplers and Hose
Routing
14. Ensure that the hydraulic hose routing is as straight as
possible.
IMPORTANT:
Straight routing will prevent abrasion damage to the
hydraulic hoses.
Figure 5.64: Left Cab-Forward Platform
15. Push latch (A) to unlock platform (B).
ATTACHING A HEADER TO THE WINDROWER
