215620 100 Revision A

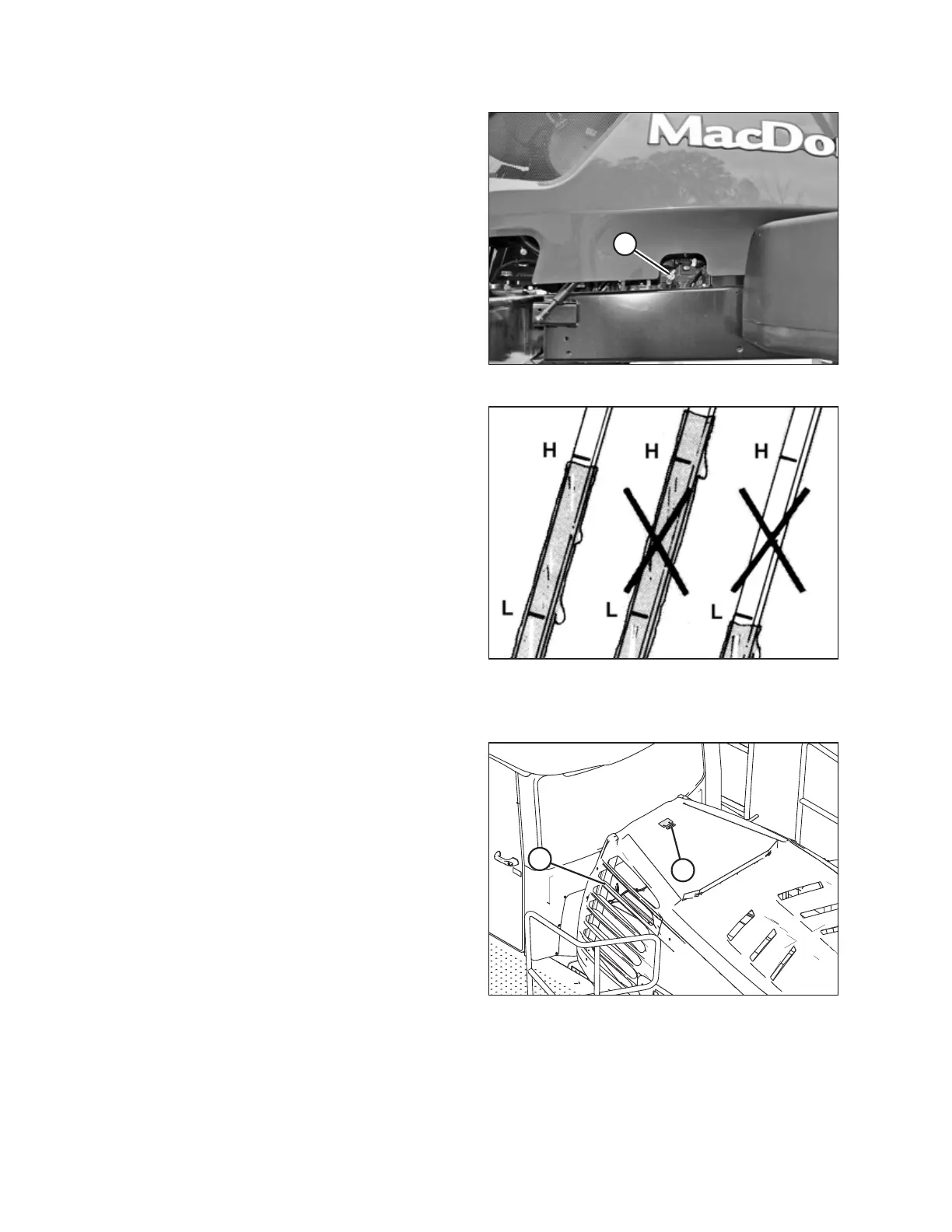

Figure 4.11: Engine Oil Dipstick Location
1. Locate the engine oil dipstick on the right side of the
windrower. Remove dipstick (A) by turning it
counterclockwise to unlock it.
2. Wipe the dipstick clean and reinsert it into the engine.
Figure 4.12: Engine Oil Level on Dipstick
3. Remove the dipstick again and check the oil level. The oil
level should be between the LOW (L) and HIGH (H) marks
on the dipstick. If the oil level is below the LOW mark, you
will need to add oil.
NOTE:
Adding 1.9 liters (2 U.S. quarts) of engine oil will raise the
level from LOW to HIGH.
4. Replace the dipstick and turn it clockwise to lock it.
If the oil level is too low, follow these steps to add oil:
Figure 4.13: Hood
5. Move latch (A) toward the right cab-forward side of the
windrower.
6. Grasp louver (B), and lift the hood to open it.
PERFORMING PREDELIVERY CHECKS
