215620 137 Revision A

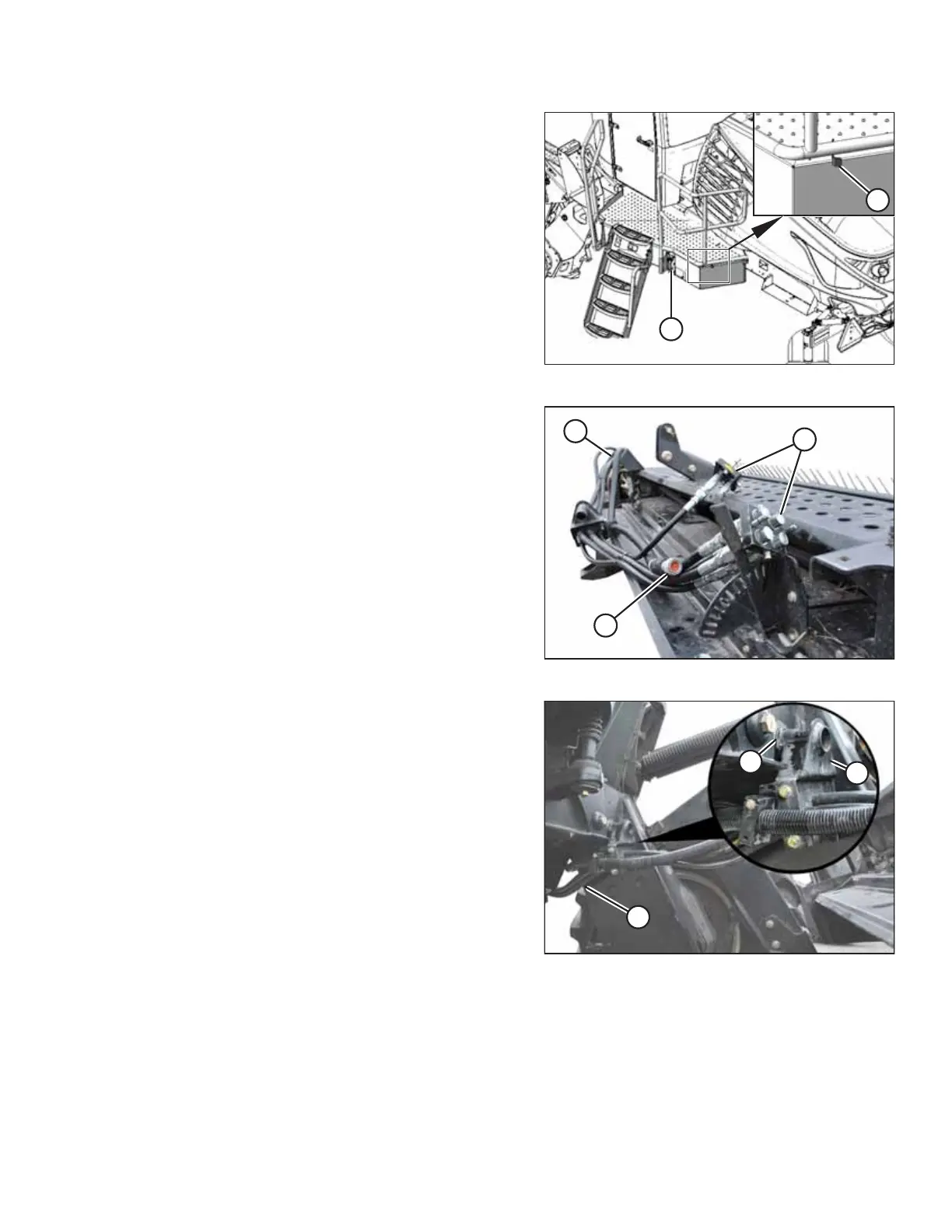

Figure 5.17: Left Cab-Forward Platform
1. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
2. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
Figure 5.18: Hydraulic Hoses in Storage Position
3. Retrieve hydraulic multicouplers (A) and electrical
harness (B) from the header.
4. Route the hose/harness bundle toward the windrower
through support (C).
Figure 5.19: Multicoupler
5. Insert hose support (B) into hole (A) in the windrower left
leg, and route header hose bundle (C) under the windrower
to the hydraulic and electrical couplers.
ATTACHING A HEADER TO THE WINDROWER
