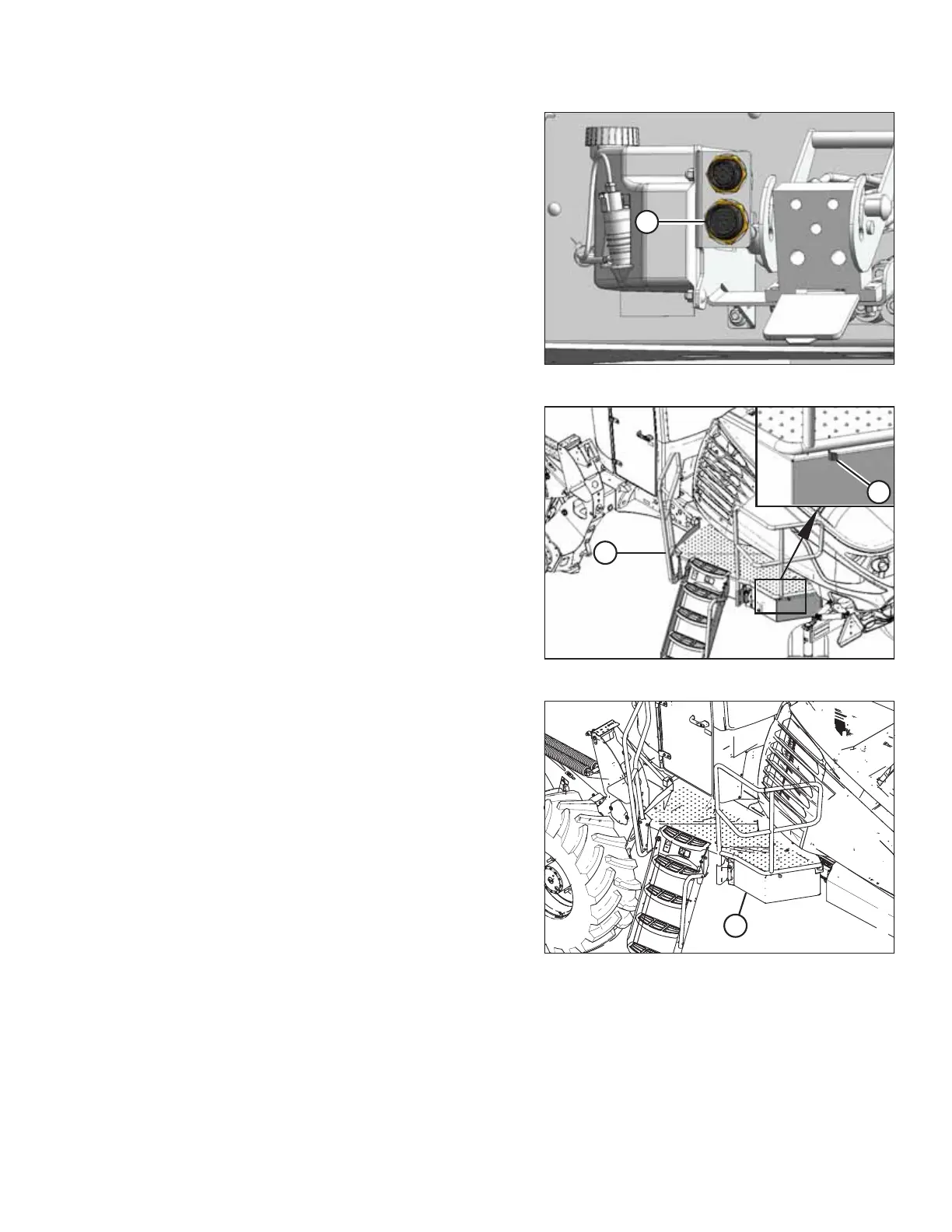

Figure 5.22: Electrical Connectors
12. Remove the cover from receptacle (A), and connect the
electrical harness from the header.
Figure 5.23: Left Cab-Forward Platform
13. Push latch (A) to unlock platform (B).
Figure 5.24: Left Cab-Forward Platform
14. Pull platform (A) towards the cab until it stops and the latch
is engaged.
