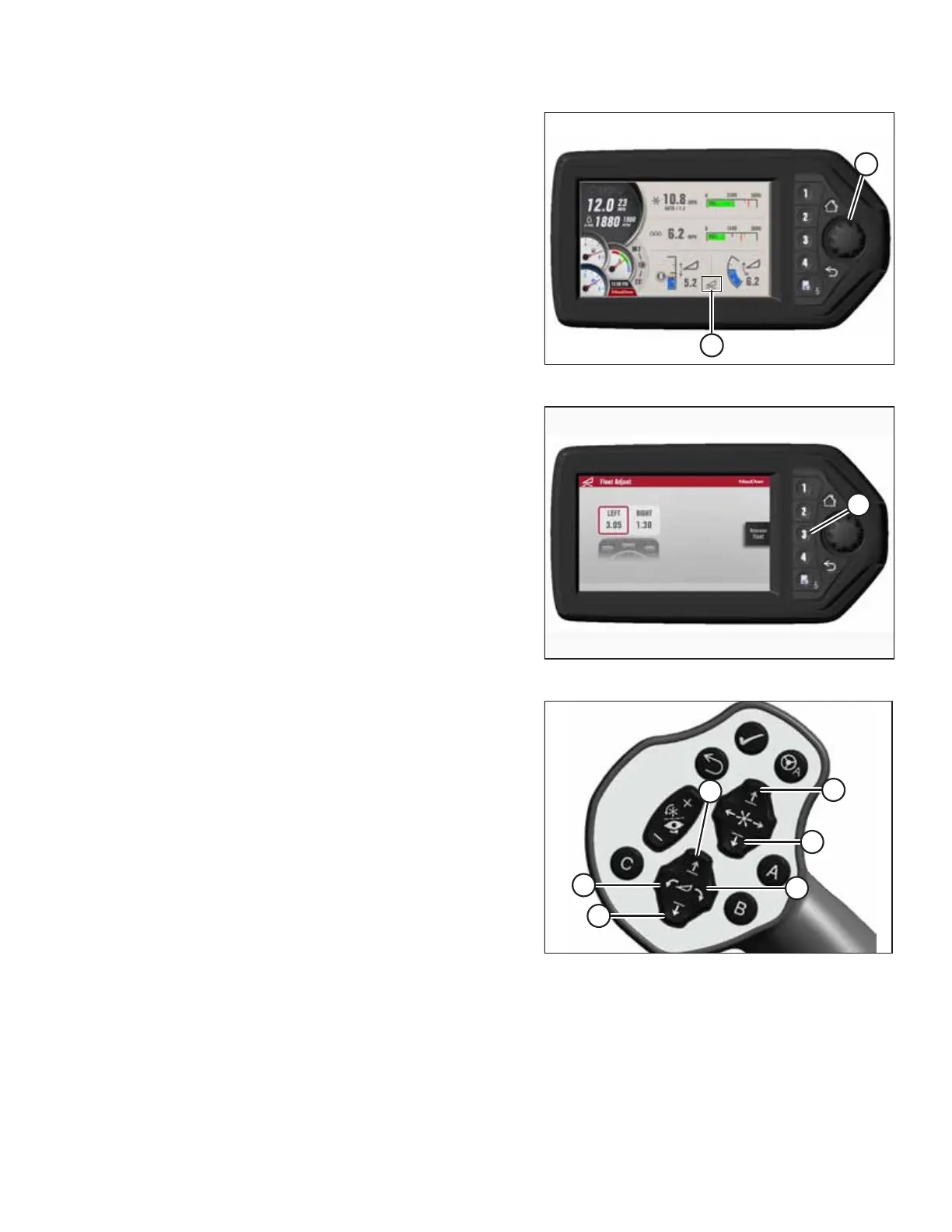

Figure 5.84: HPT Display
4. Press rotary scroll knob (A) on the HPT to highlight the
QuickMenu options.
5. Rotate scroll knob (A) to highlight HEADER FLOAT
symbol (B), and press the scroll knob to select it.
Figure 5.85: HPT Display
6. On the FLOAT ADJUST page, press soft key 3 (A) to remove
the header float.
NOTE:
If the header float is active, the icon at soft key 3 will say
REMOVE FLOAT; if the header float has been removed, then
the icon will say RESUME FLOAT.
Figure 5.86: GSL
A - Reel Down B - Reel Up
C - Header Tilt Down D - Header Tilt Up
E - Header Down F - Header Up
7. Press HEADER DOWN switch (E) on the ground speed lever
(GSL) to fully retract the header lift cylinders.
8. Press REEL UP switch (B) on the GSL to raise the center-link
until the hook is above the attachment pin on the header.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header.
