215620 191 Revision A

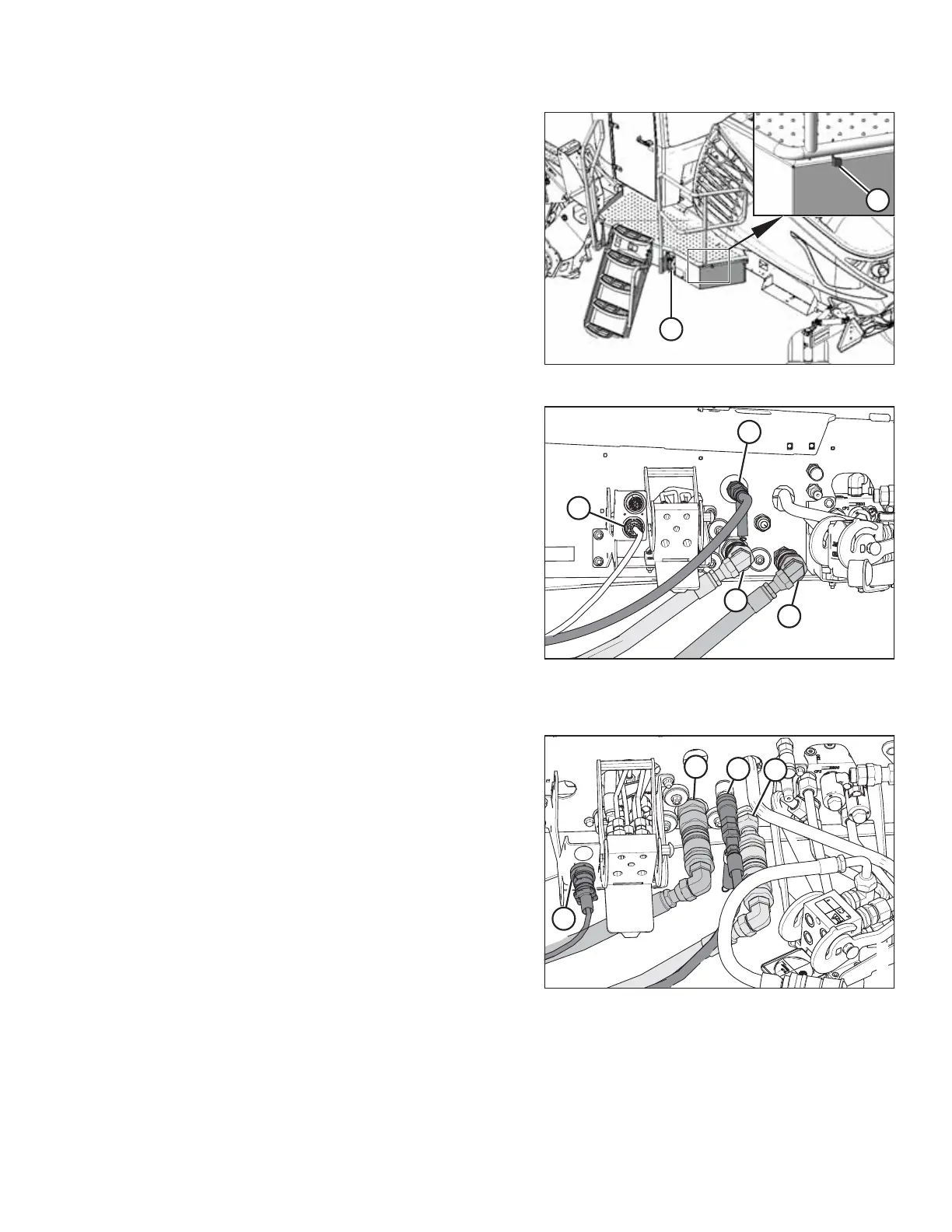

Figure 5.157: Left Cab-Forward Platform
5. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
6. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
Figure 5.158: Header Drive Hydraulics – M1240
Connection Locations, Low Pressure Case Drain Kit
MD #6698 Installed
Figure 5.159: Header Drive Hydraulics – M1170
Connection Locations
7. Disconnect electrical harness (D), and hydraulic hoses (A),
(B), and (C) from the windrower.
ATTACHING A HEADER TO THE WINDROWER
