215620 193 Revision A

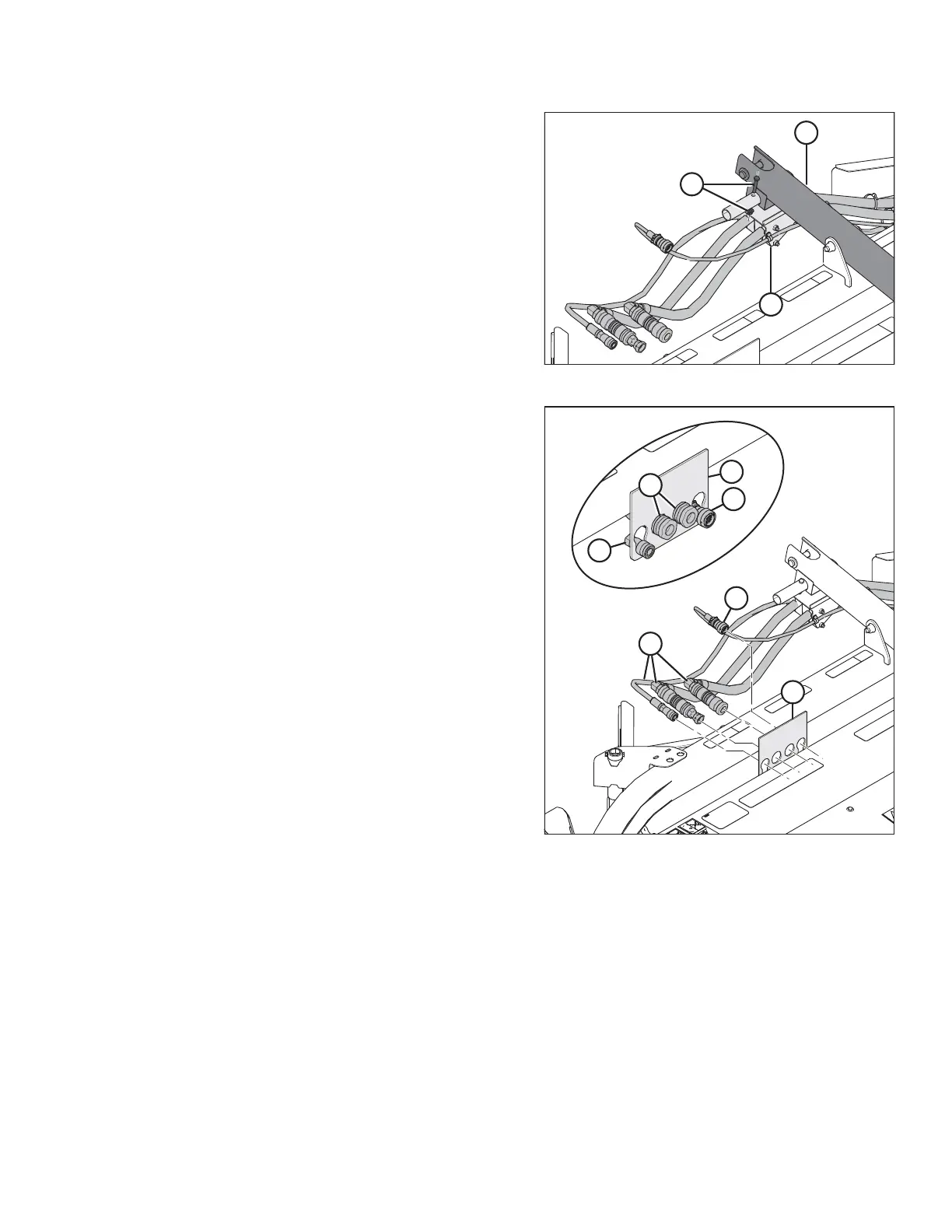

Figure 5.163: Hose Storage Position
11. Slide support (A) into center-link support (B) and secure it
with hardware (C).
Figure 5.164: Hydraulic Storage Plate
12. Store hoses (A) and electrical harness (B) disconnected
from the windrower into storage plate (C).
NOTE:
Install caps and plugs on open lines to prevent the buildup
of dirt and debris while the header is in storage.
NOTE:
Some parts have been removed from the illustration for the
sake of clarity.
ATTACHING A HEADER TO THE WINDROWER
To Next Page
