215620 216 Revision A

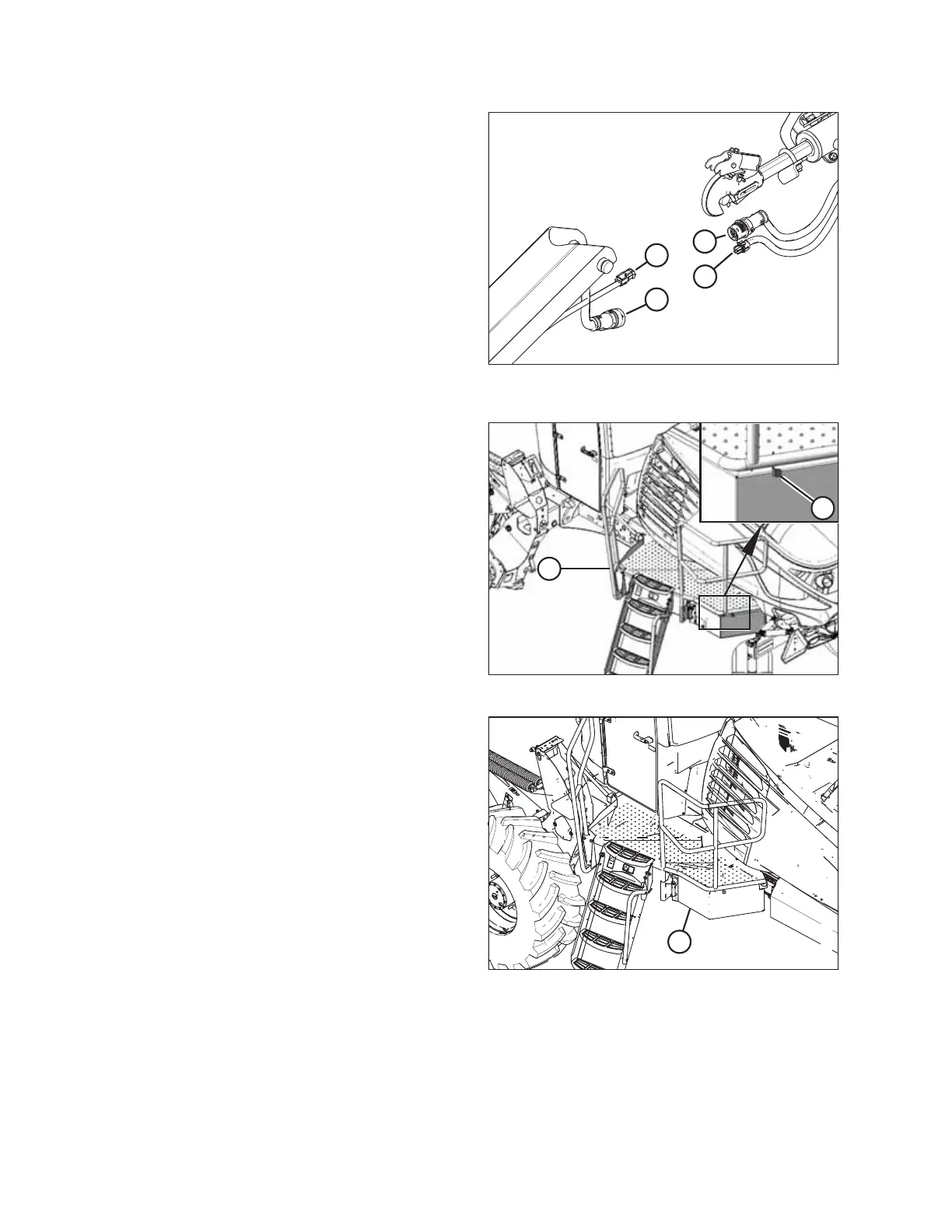

Figure 5.219: Electrical Harness Connection at
Center-Link
6. Connect main header harness (A) to adapter harness (B).
7. If you are connecting the standard-configuration R2
header equipped with the optional electric baffle control
kit: Connect electric baffle control harness (C) to adapter
harness (D).
8. If you are connecting an R2 header configured for grass-
seed harvesting: Connect actuator harness (C) to adapter
harness (D).
Figure 5.220: Left Cab-Forward Platform
9. Push latch (A) to unlock platform (B).
Figure 5.221: Left Cab-Forward Platform
10. Pull platform (A) towards the cab until it stops and the latch
is engaged.
ATTACHING A HEADER TO THE WINDROWER
