215620 221 Revision A
IMPORTANT:
Install caps and plugs on open lines to prevent buildup of dirt and debris while in storage.

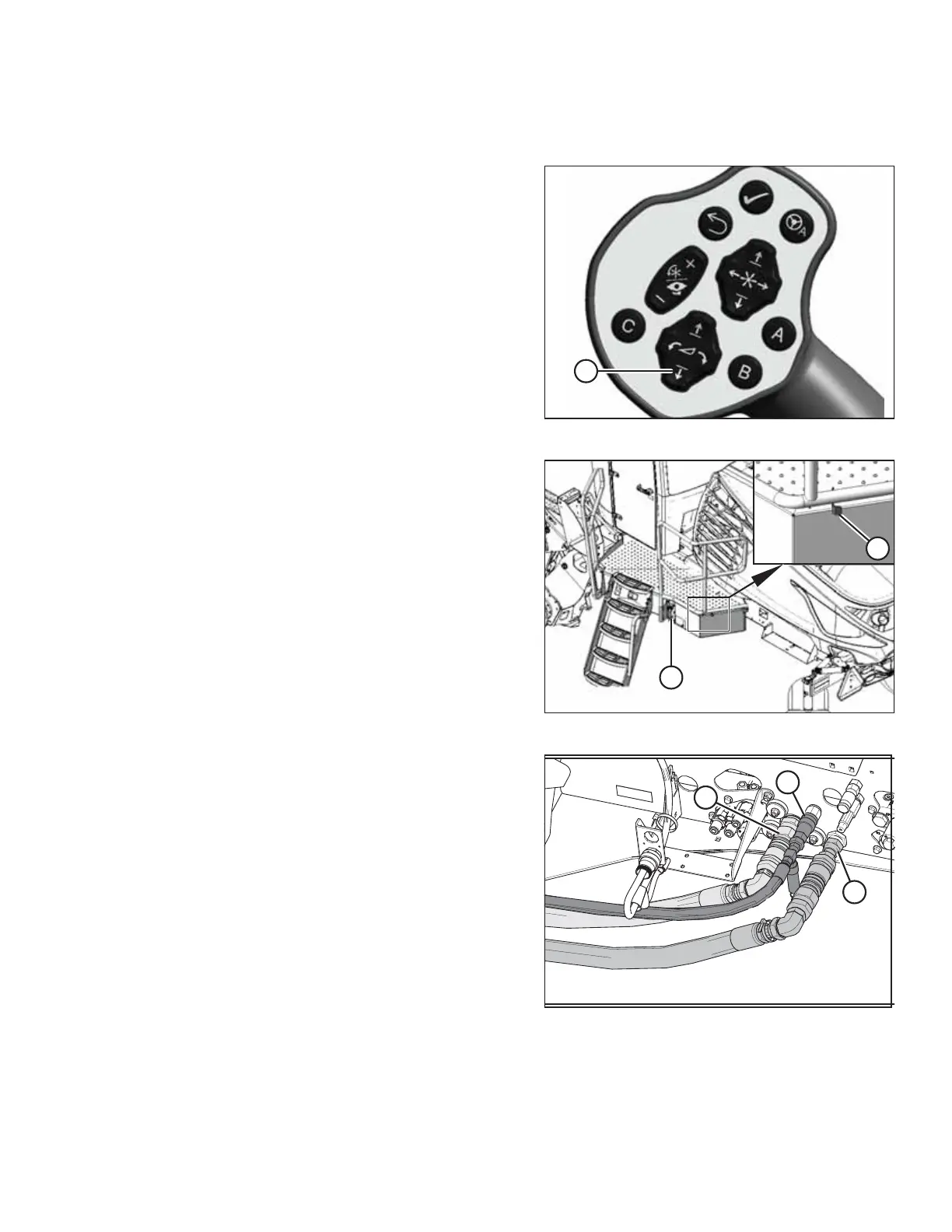

Figure 5.230: GSL
1. Start the engine, and press switch (A) to lower the header
to the ground.
2. Shut down the engine, and remove the key from
the ignition.
Figure 5.231: Left Cab-Forward Platform
3. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
4. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
Figure 5.232: Header Drive Hydraulics – All M1
Configurations using Quick Couplers
5. Disconnect hydraulic hoses (A), (B), and (C) from the
windrower.
ATTACHING A HEADER TO THE WINDROWER
