To move the windrower to the assembly area, follow these steps:

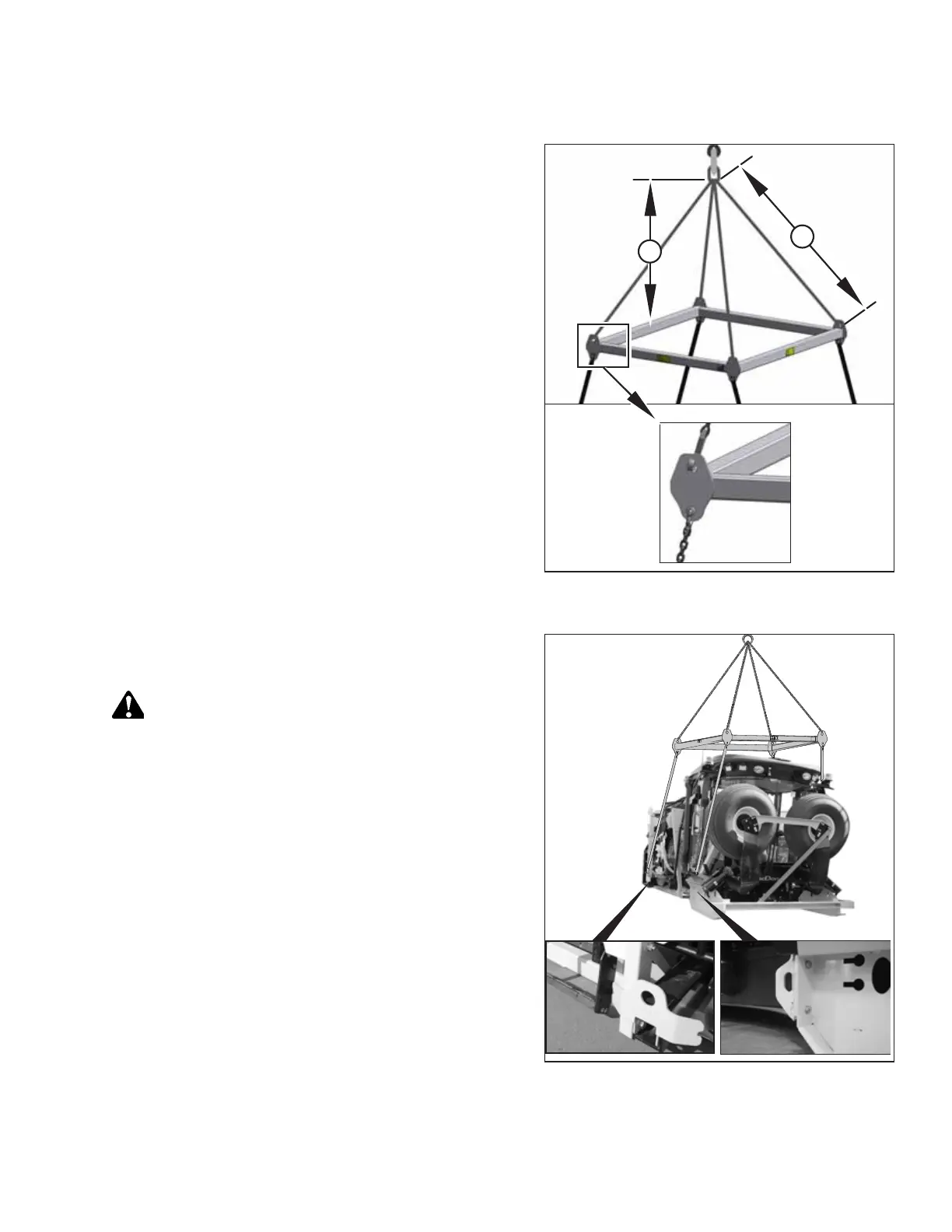

Figure 2.3: Lift Sling
A - 1500 mm (59 in.) Minimum B - 2120 mm (83.5 in.) Typical
1. Attach the chains or cables to the four lifting points on the
lift sling, and connect the loop ends to the crane hook.
IMPORTANT:
Use cables or chains with a minimum lifting capacity of
3221 kg (7100 lb.).
Figure 2.4: Shipping Frame Lifting Points
2. Attach the lift sling to the four designated lifting points on
the windrower shipping frame as shown.
DANGER
To avoid injury or death from a swinging or falling load, keep all
bystanders clear when lifting. Equipment used for lifting must
exceed the maximum requirements specified in this section.
3. Lift the windrower off the platform and move it to the
setup area.
UNLOADING WINDROWER
