215620 34 Revision A

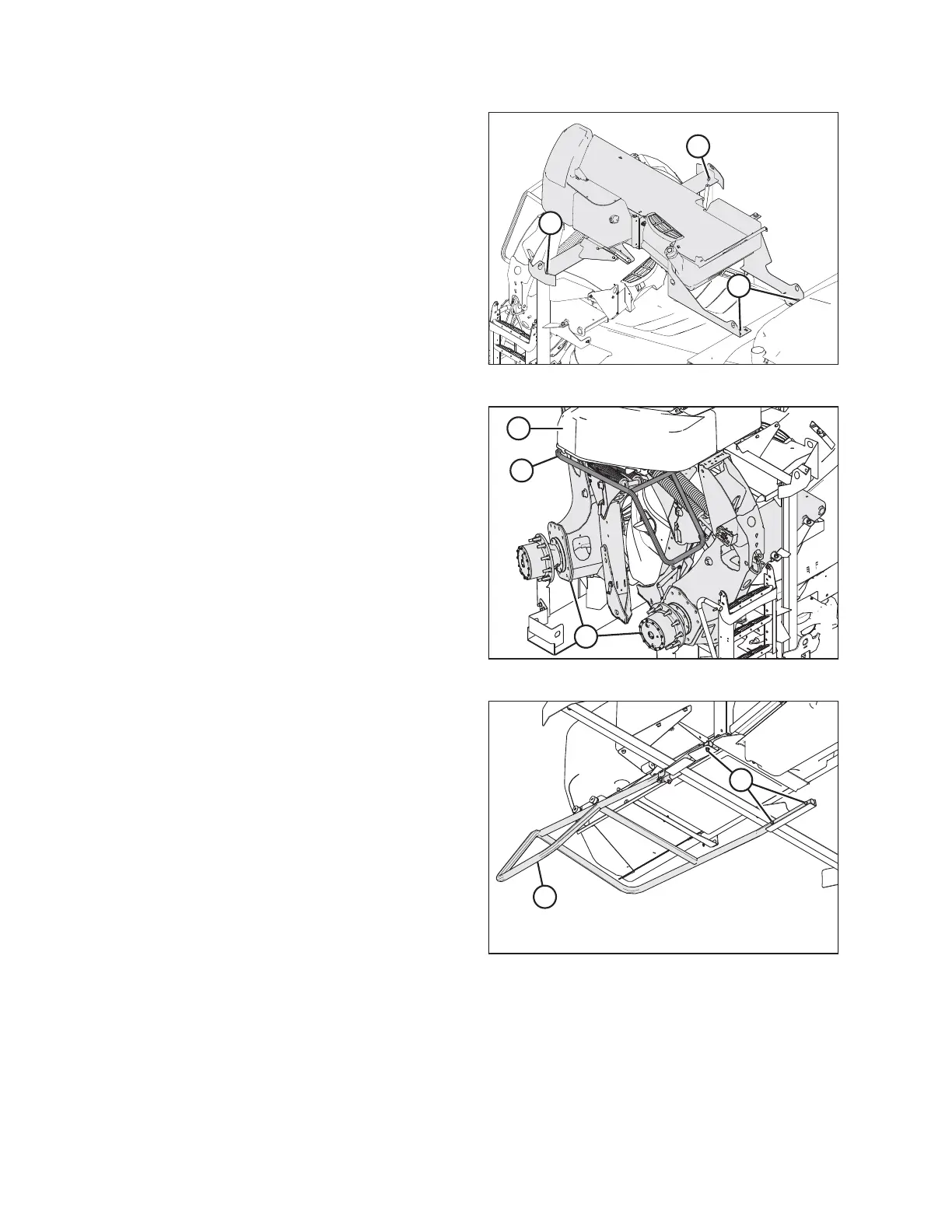

Figure 2.23: Fuel Tank Shipping Assembly
8. Remove two bolts (A) securing the shipping assembly to the
front horizontal brace.
9. Remove two bolts (B) securing the shipping assembly to the
vertical side braces.
10. Before lifting, have a second person guide the assembly to
avoid contact with the windrower.
Figure 2.24: Handrail and Wheel Legs
11. Slowly lift the fuel tank shipping assembly (C) away from
the windrower. Avoid snagging handrail (A) on wheel leg
assemblies (B).
Figure 2.25: Handrail under Fuel Tank Shipping
Assembly
12. With the fuel tank shipping assembly suspended off the
ground, support handrail (A), remove and retain
hardware (B), and then set the handrail aside. Keep the
hardware with the handrail for installation.
13. Lower the fuel tank shipping assembly down onto 152 mm
(6 in.) blocks to prevent damage.
UNLOADING WINDROWER
