215620 37 Revision A

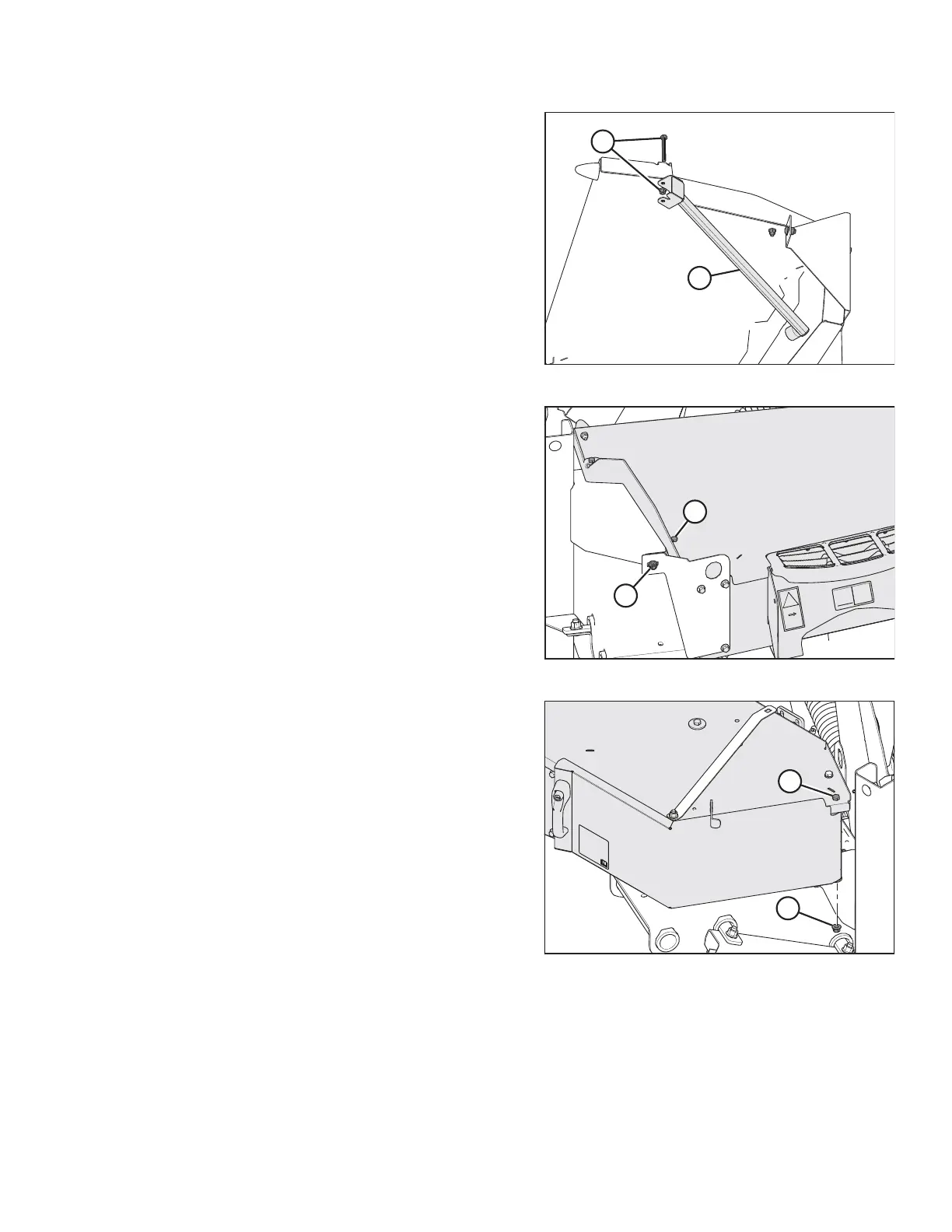

Figure 2.30: Left Platform – Right Underside
4. From below the platform on the right side of windrower,
remove nut and bolt (A), and remove door stop (B). Retain
nut and bolt (A) for reuse.
NOTE:
To show the door stop under the platform, the windrower,
wheel legs, and shipping supports have been removed from
this illustration.
Figure 2.31: Left Platform – Right Side
5. Remove and discard nuts and bolts (A) and (B).
6. Carefully lift the platform assembly off the frame, and set it
down on a level surface.
Figure 2.32: Left Platform
7. Reinstall nut (A) on retained long toolbox bolt (B).
UNLOADING WINDROWER
