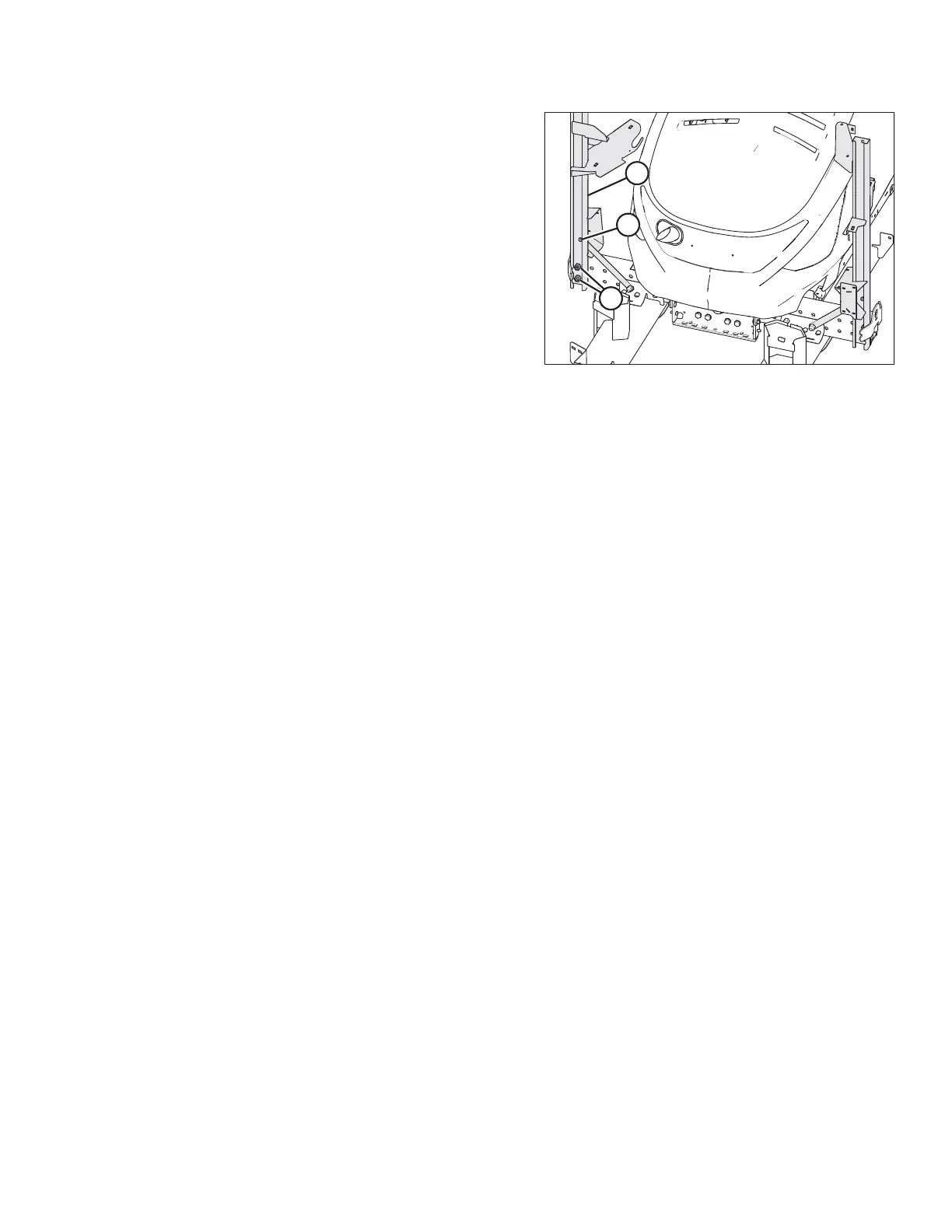

Figure 2.41: Rear Vertical Channels
5. Remove one nut and bolt (A) connecting vertical
channel (B) to the walking beam strap.
6. Remove two nuts and bolts (C) connecting the channel to
the walking beam, and the remove the channel. Repeat on
the opposite side.
UNLOADING WINDROWER
