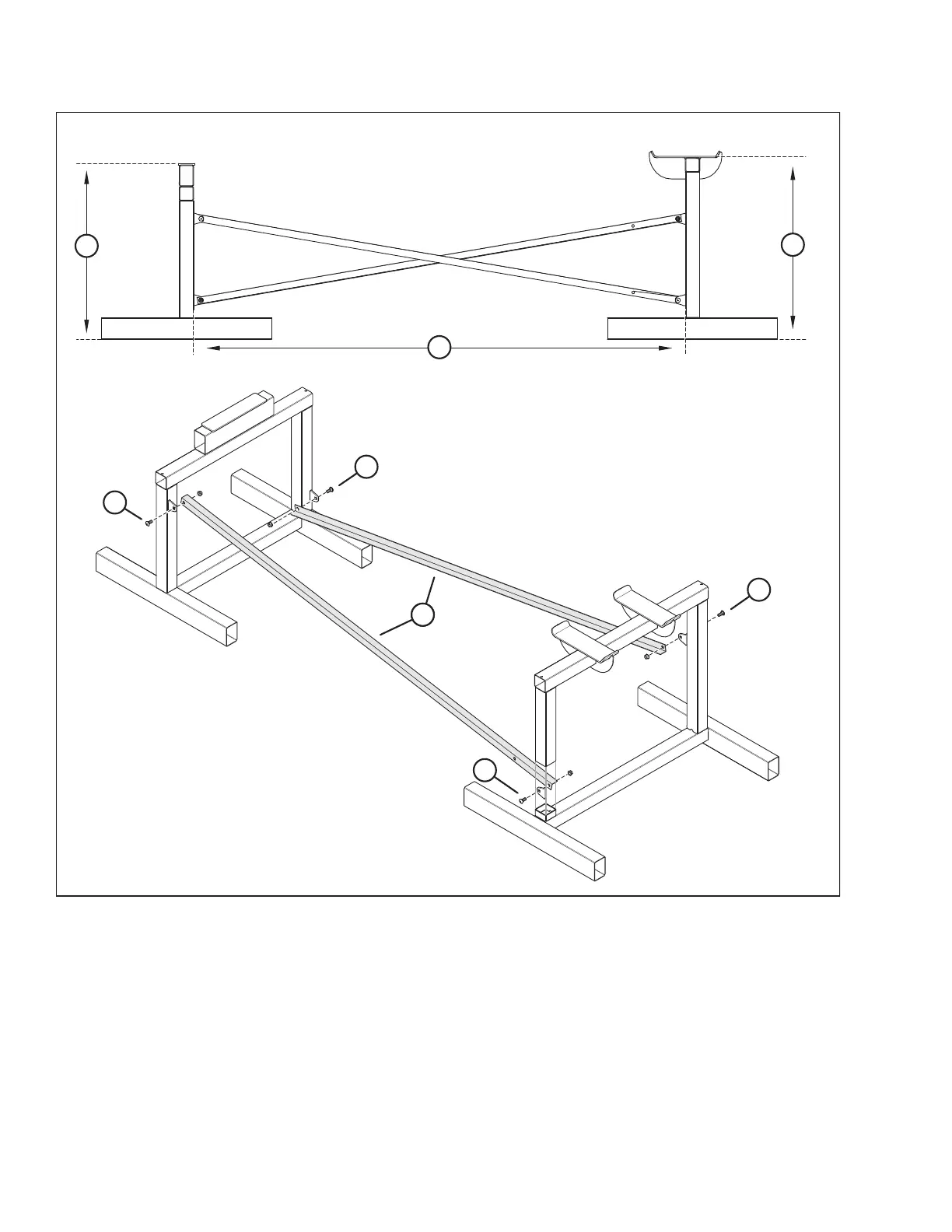

Figure 3.1: Assembly Stand Setup
2. Set the assembly stands on flat and level ground to maintain the difference in height between the assembly stands:
• Rear assembly stand height (A) is 1240 mm (48 13/16 in.).
• Front assembly stand height (B) is 1291 mm (50 13/16 in.)
3. Space the stands out so that dimension (C) is 3470 mm (136 5/8 in.).
4. Attach diagonal angles (D) to the stands using 5/8 x 1.5 in. bolts and nuts at locations (E).
5. Torque the nuts to 153 Nm (113 lbf·ft).
ASSEMBLING WINDROWER
