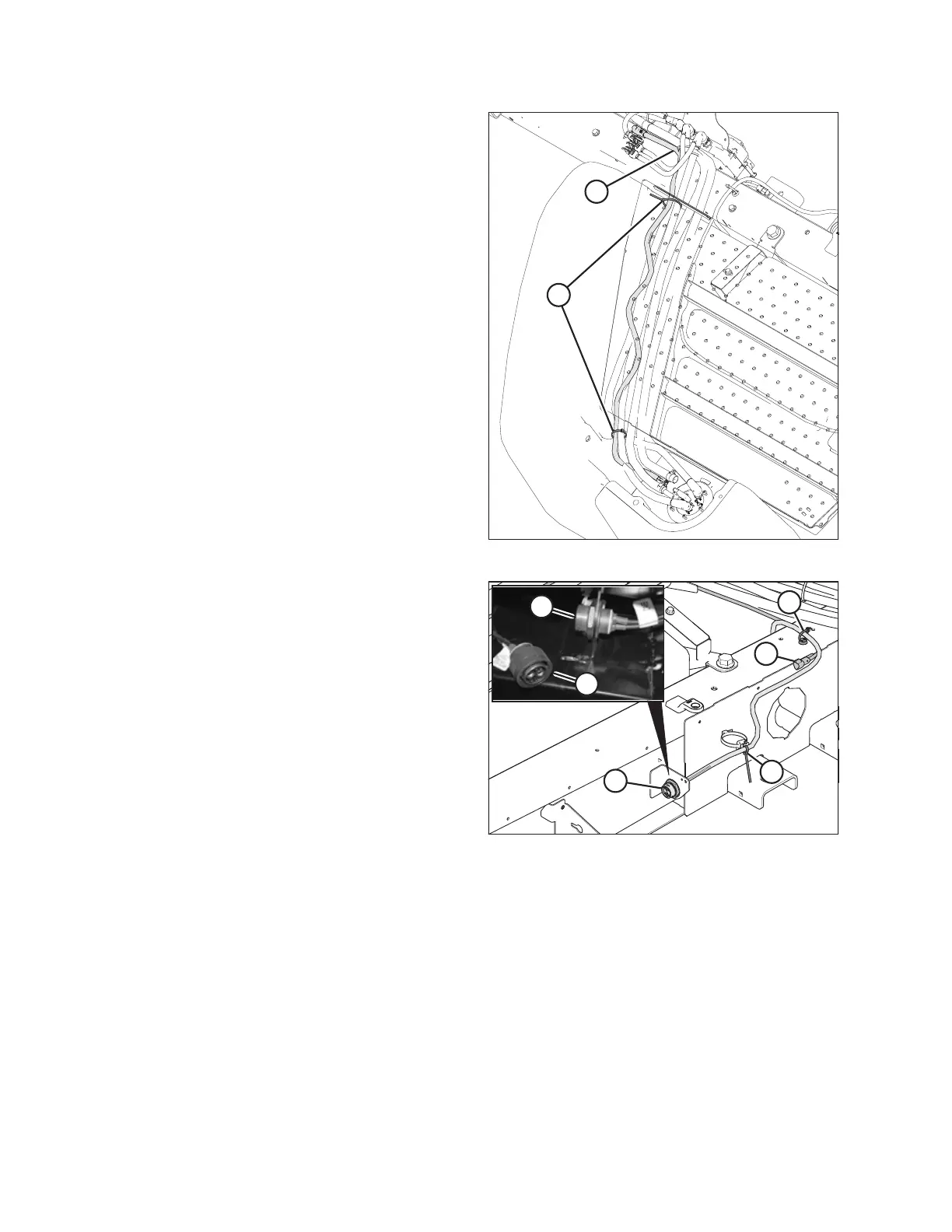

Figure 3.75: Cable Tie Locations
13. Secure DEF head interconnect harness (A) to the DEF supply
module hose with cable ties (B).
Figure 3.76: Electrical Connections
14. Route round auxiliary power connector (B) (C40B) from the
right platform to the bracket on the frame and secure with
washer and nut.
15. Connect C40B (B) to C40A (A), and secure harness to air
cleaner support pipe (pipe not shown) with large cable
tie (C).
16. Remove the protective cap from fuel level sender
connector (D) and plug into the chassis harness P220 (not
shown).
17. Secure the fuel level sender harness to the auxiliary power
harness with cable tie (E).
ASSEMBLING WINDROWER
