Fuel Limiter
Inspection / Adjust
A5.05. 05.04.01.01
3750
M20
en / 30.05.2000 IB021625 1/2
05
Ĺ
See also: 05.04.02.nn
Spare parts list: B1.05.05.1.4337
Time requirement: 1 Pers./ 0,50 h
Personnel qualification: skilled engine hand
---------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
Inspection:
of fuel limiter every 3,750 h
Note:
This unit limits the fuel injection depending on the carge air pressure so as to avoid a
smoky exhaust. The exhaust can become black in the event of a rapid speeding up or a
brisk load increase.
Sequence of operations:
1. Check all bolts and screwed
connections for tightness.
Repair any leaks (05.04.02.nn).

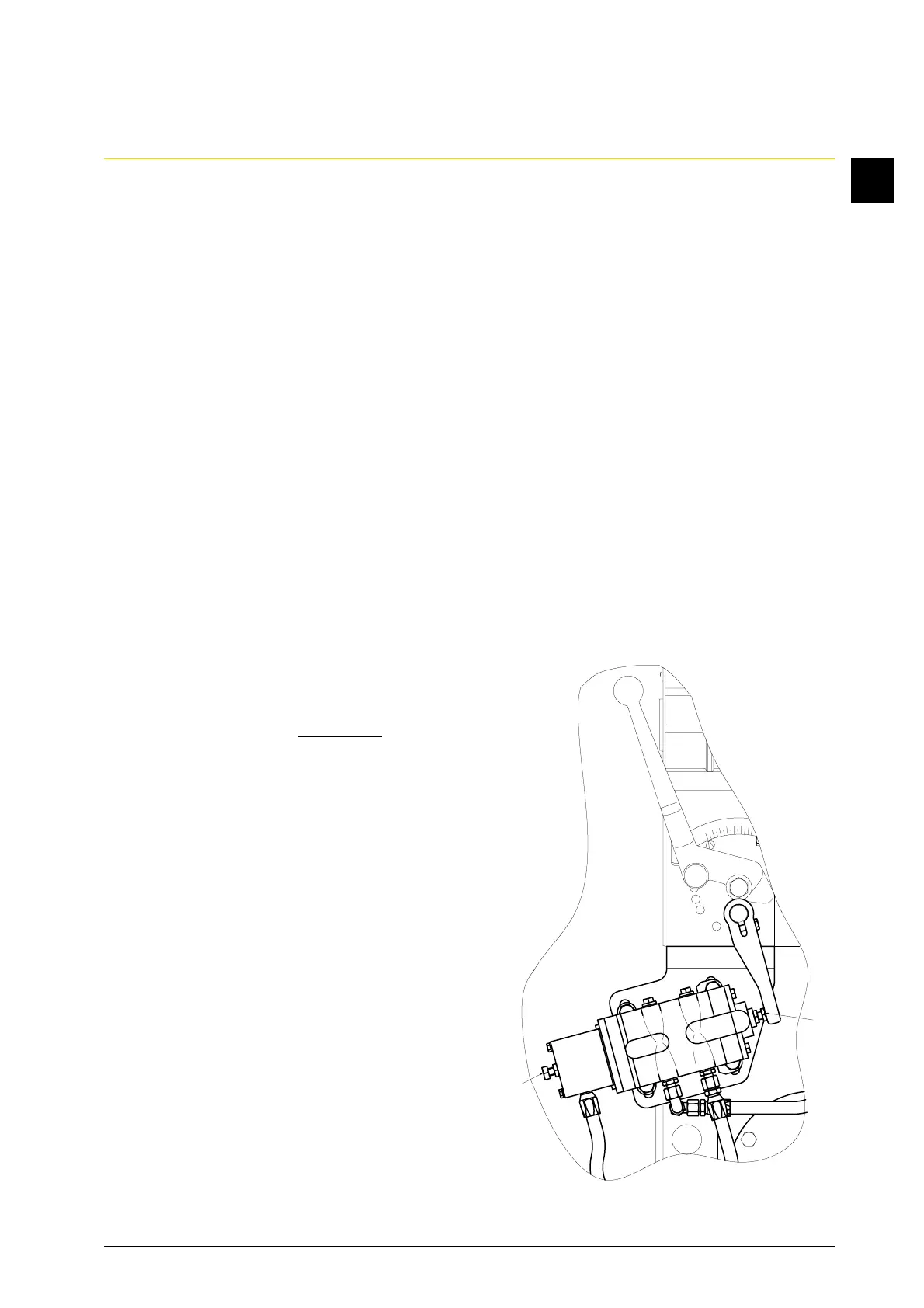

2. Check adjusting screw (Fig. 1/1) whe-
ther it admits starting fuel so that star-
ting is positively possible.
3. Check the actuating speed when the
engine is warm.
3.1 Set the control handle rapidly on full
load at an engine speed of
0,35 to 0,5 max. speed.
